Axle kit for front hubs

Front Axle Conversion Kit – For Selected Tune Front Hubs

This kit is used to replace or convert the axle standard of selected Tune front hubs. Depending on the selected variant, the kit contains the correct front axle, matching endcaps and, where required, shims to adjust the axial play.

Please choose the correct version according to your hub model and axle standard. For some hubs, such as KillHill and Princess, shims are included in the kit to allow precise adjustment of the axle play. For newer hub generations such as Micro, Nano and Yokto, the kit is supplied with the matching endcaps for the selected version.

To change the axle, a Tune toolkit for hubs is required.

Important note: 100mm hubs cannot be converted into 110mm Boost hubs, and 110mm Boost hubs cannot be converted into 100mm hubs.

Additional note: The 5x100mm 6-bolt configuration is the same as the QR5 rim brake configuration.

Technical data

Type: Front axle replacement or conversion kit
Material: Aluminium axle, depending on selected version
Compatibility: depending on selected variant
Compatible hub models: KillHill, Princess, Micro, Nano and Yokto front hubs
Tool required: Tune toolkit for hubs
Weight: from 19g, depending on selected version

Scope of delivery, depending on selected variant:

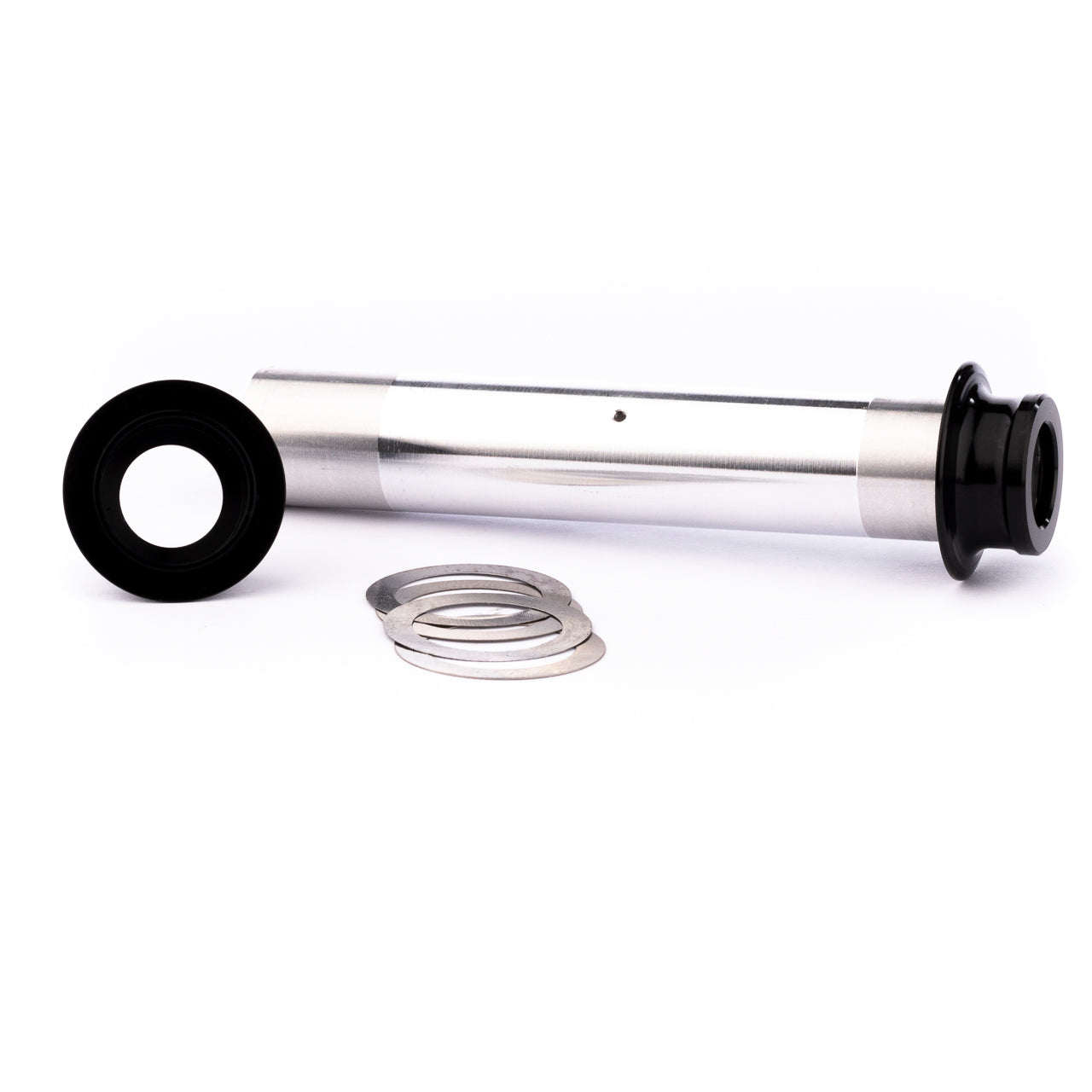

For KillHill and Princess, boost or non-boost:
1x axle with pressed-on endcap on non-drive side
1x endcap for drive side
Shims to adjust axial play

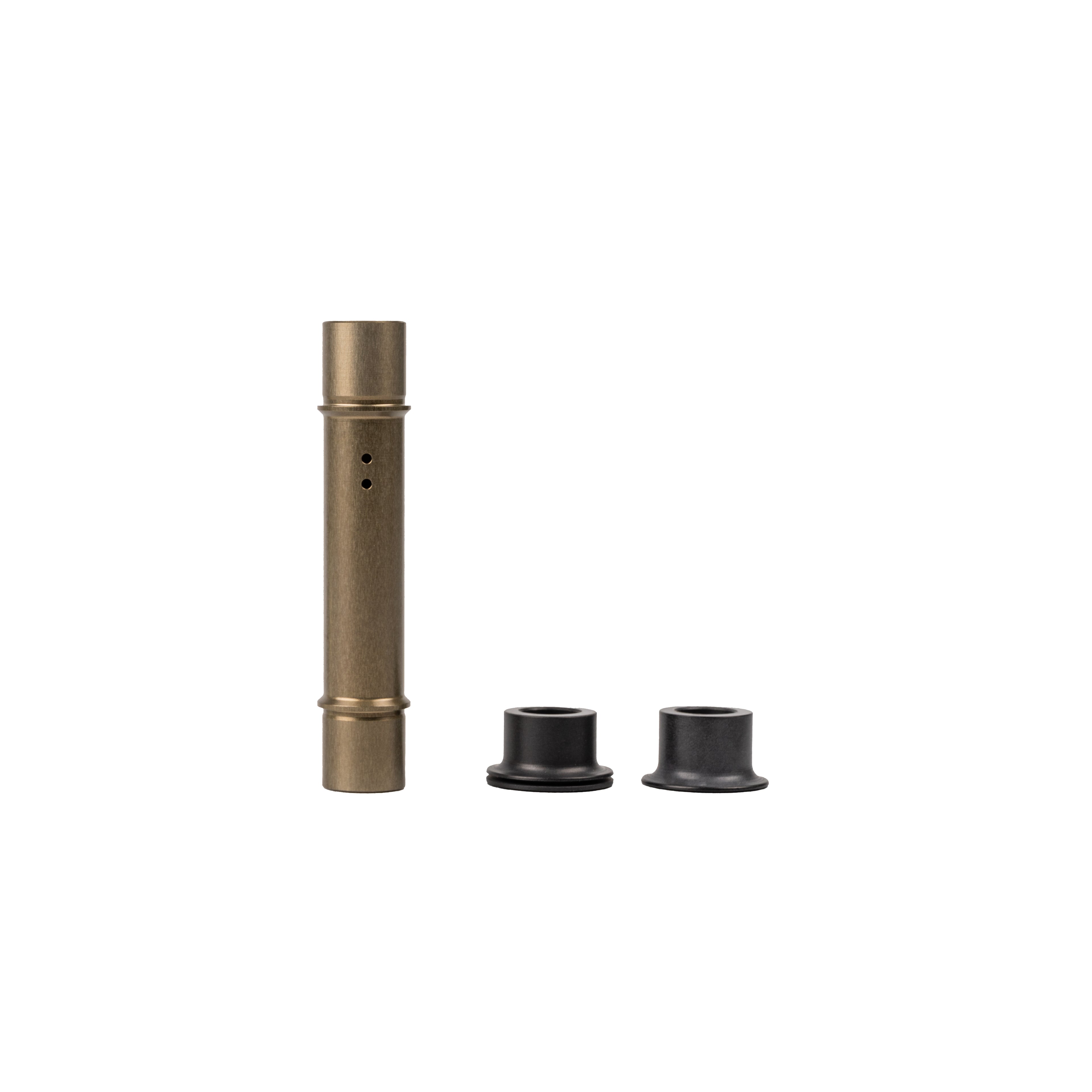

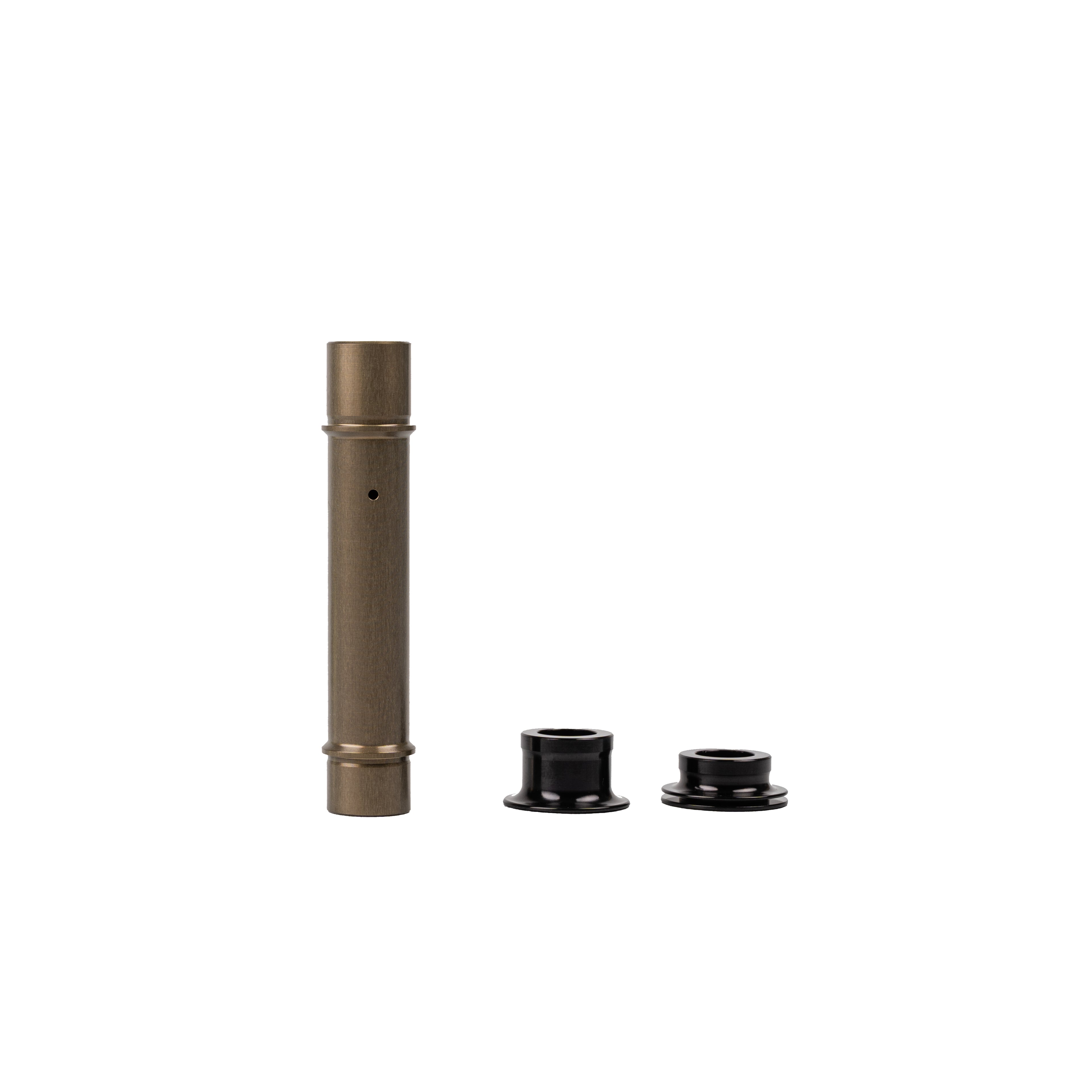

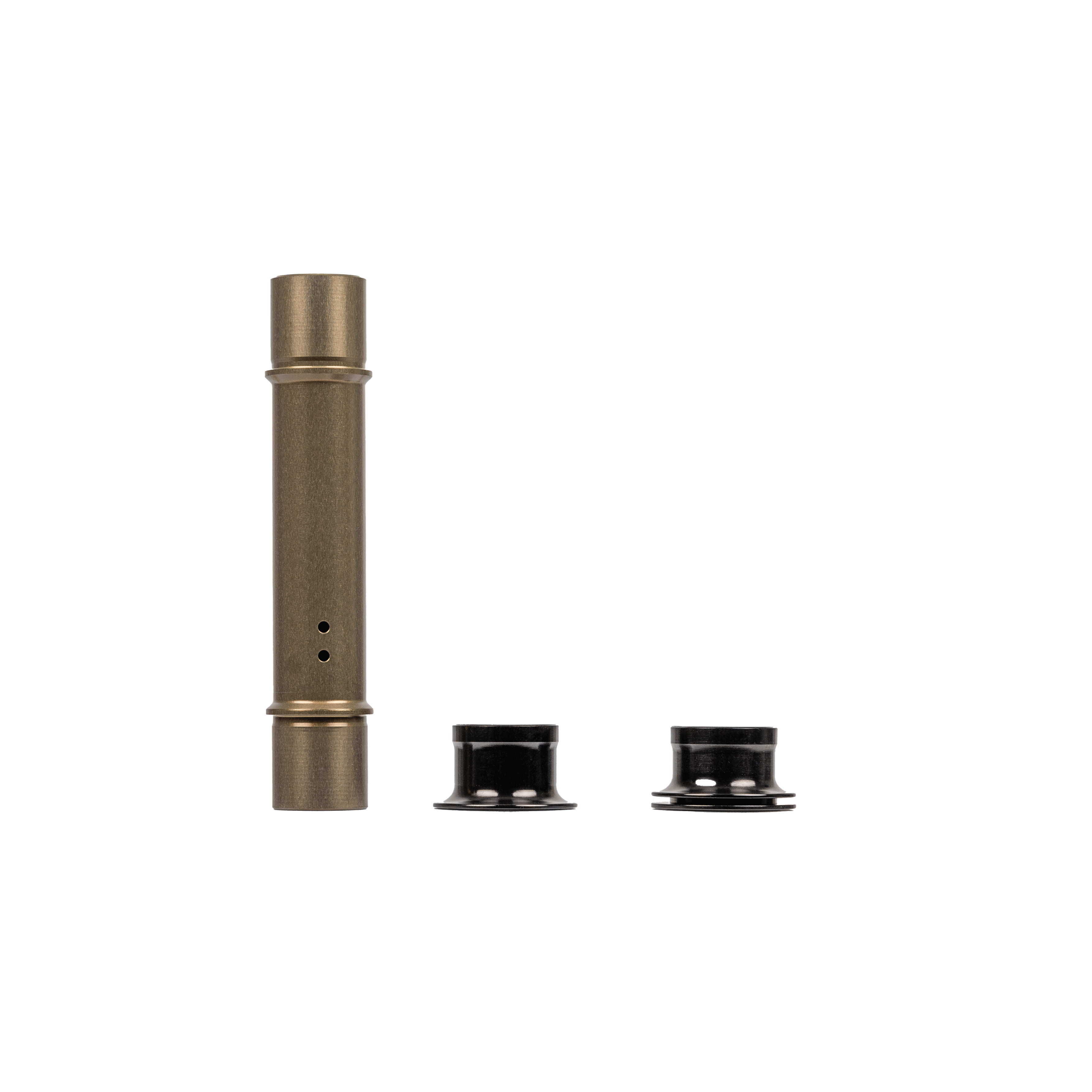

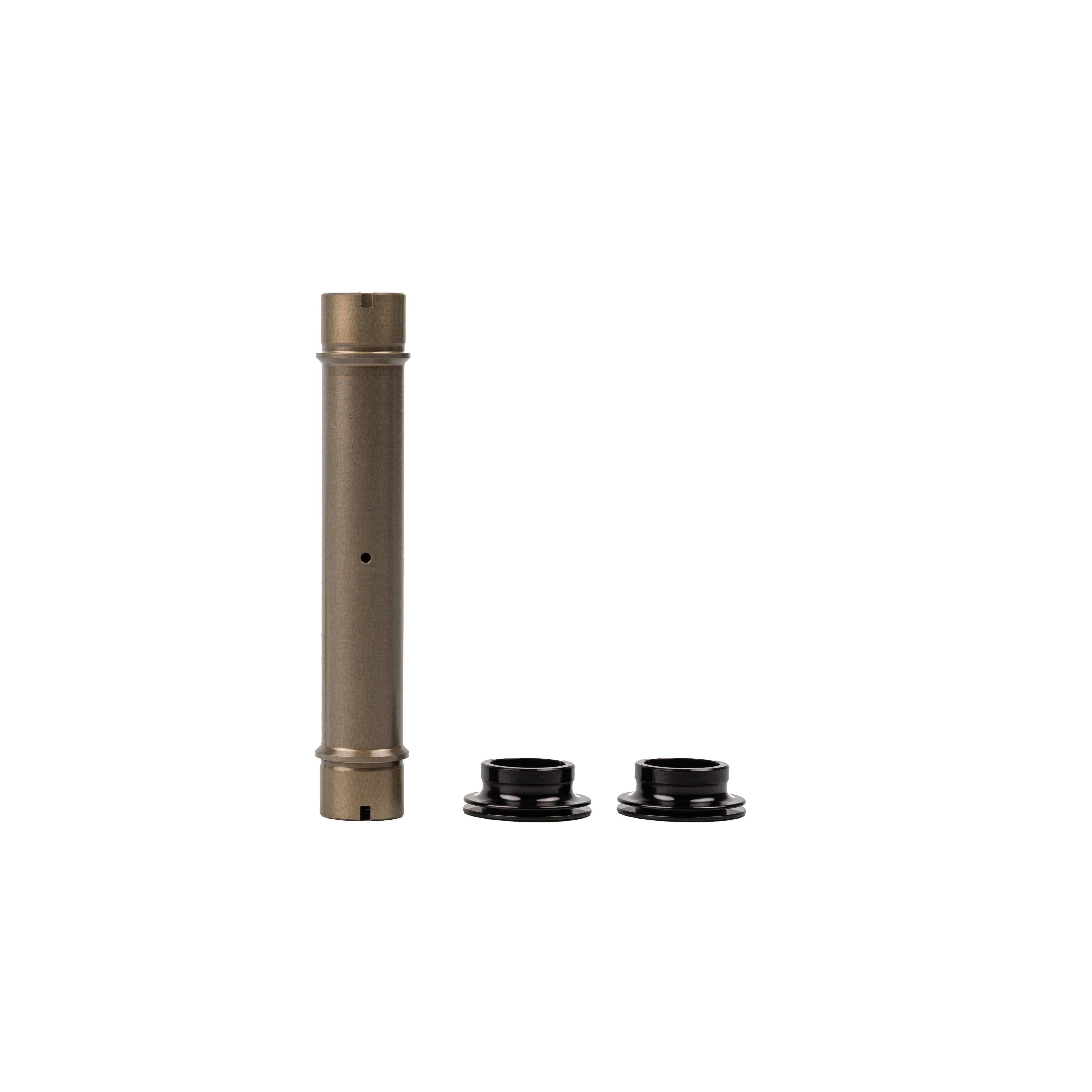

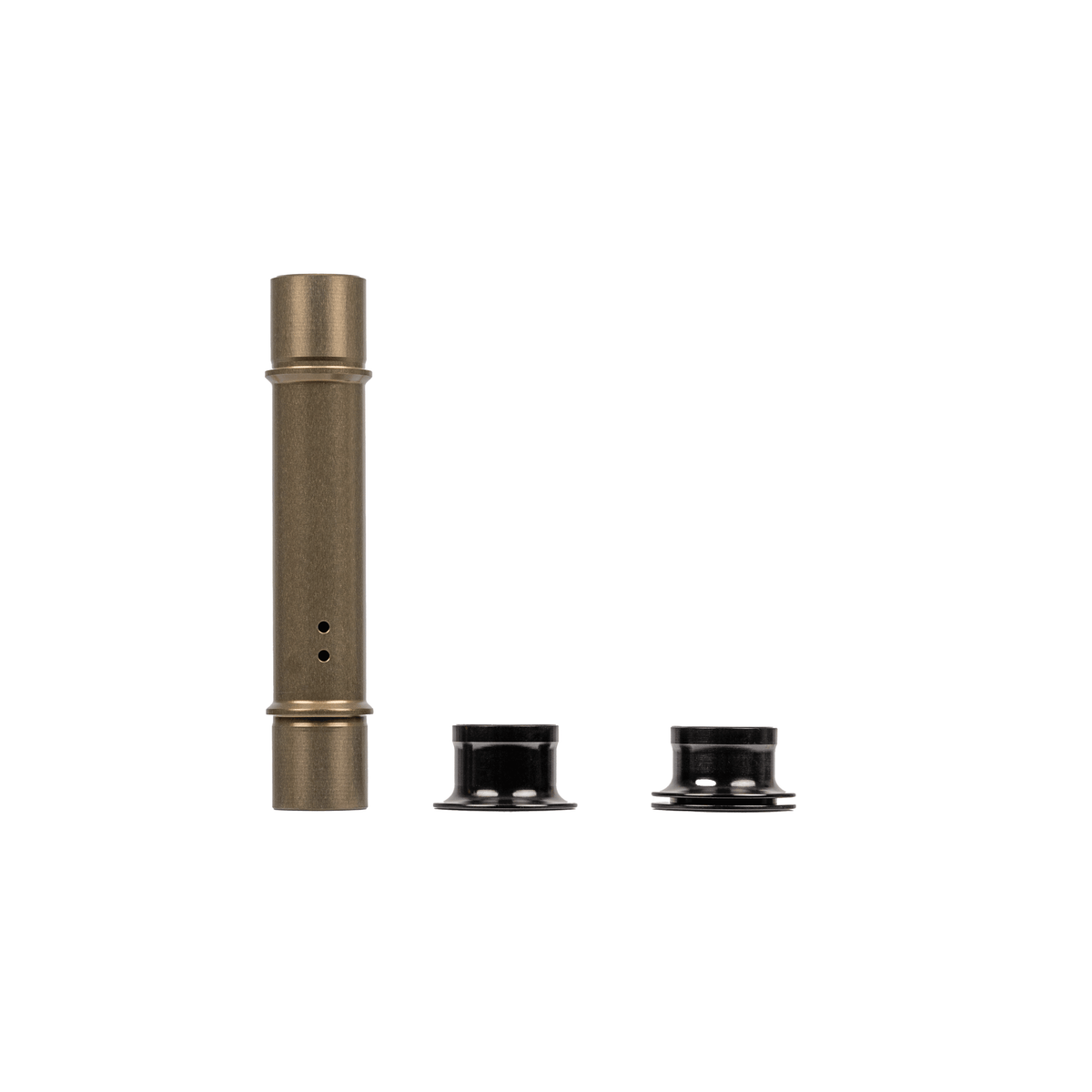

For Micro and Nano front hubs:
1x front axle
1x left endcap
1x right endcap

For Yokto front hubs:
1x front axle
1x left carbon endcap
1x right carbon endcap

For more information please refer to the user manual
