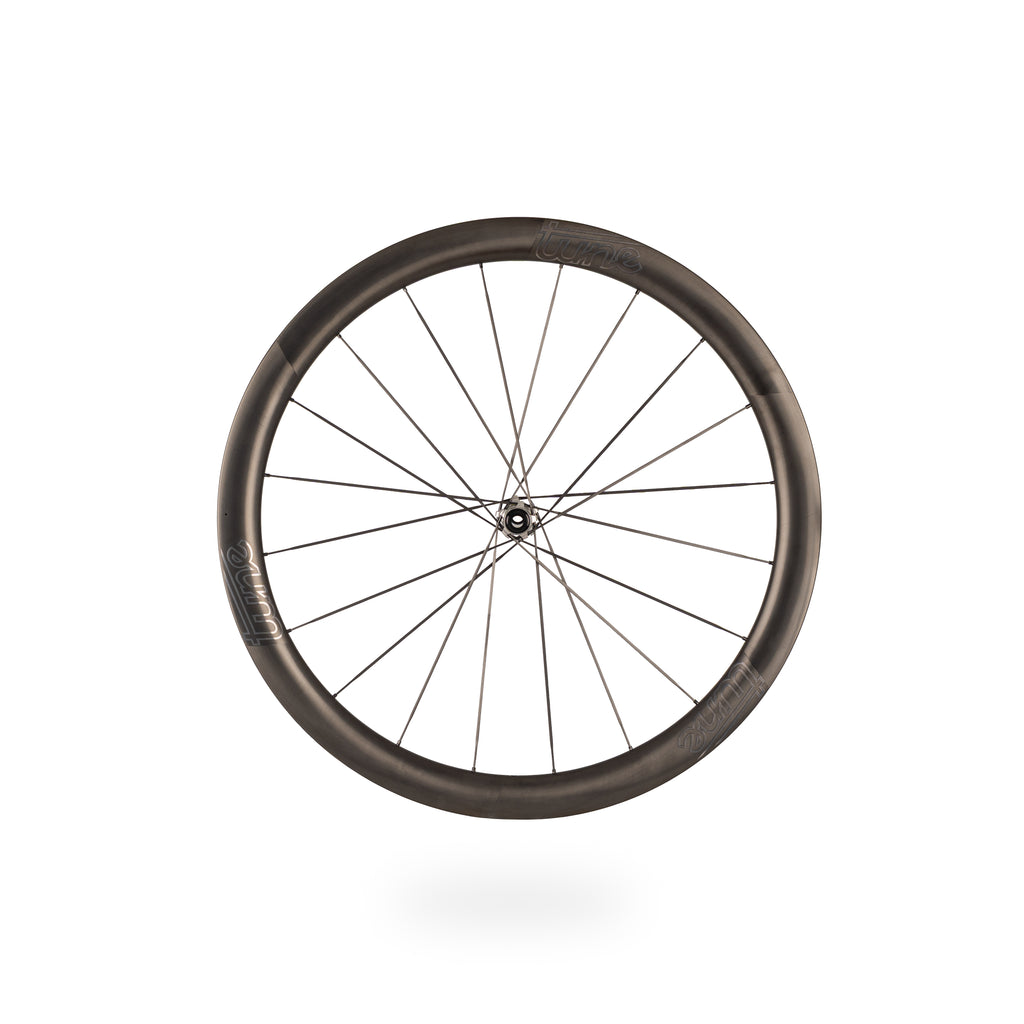

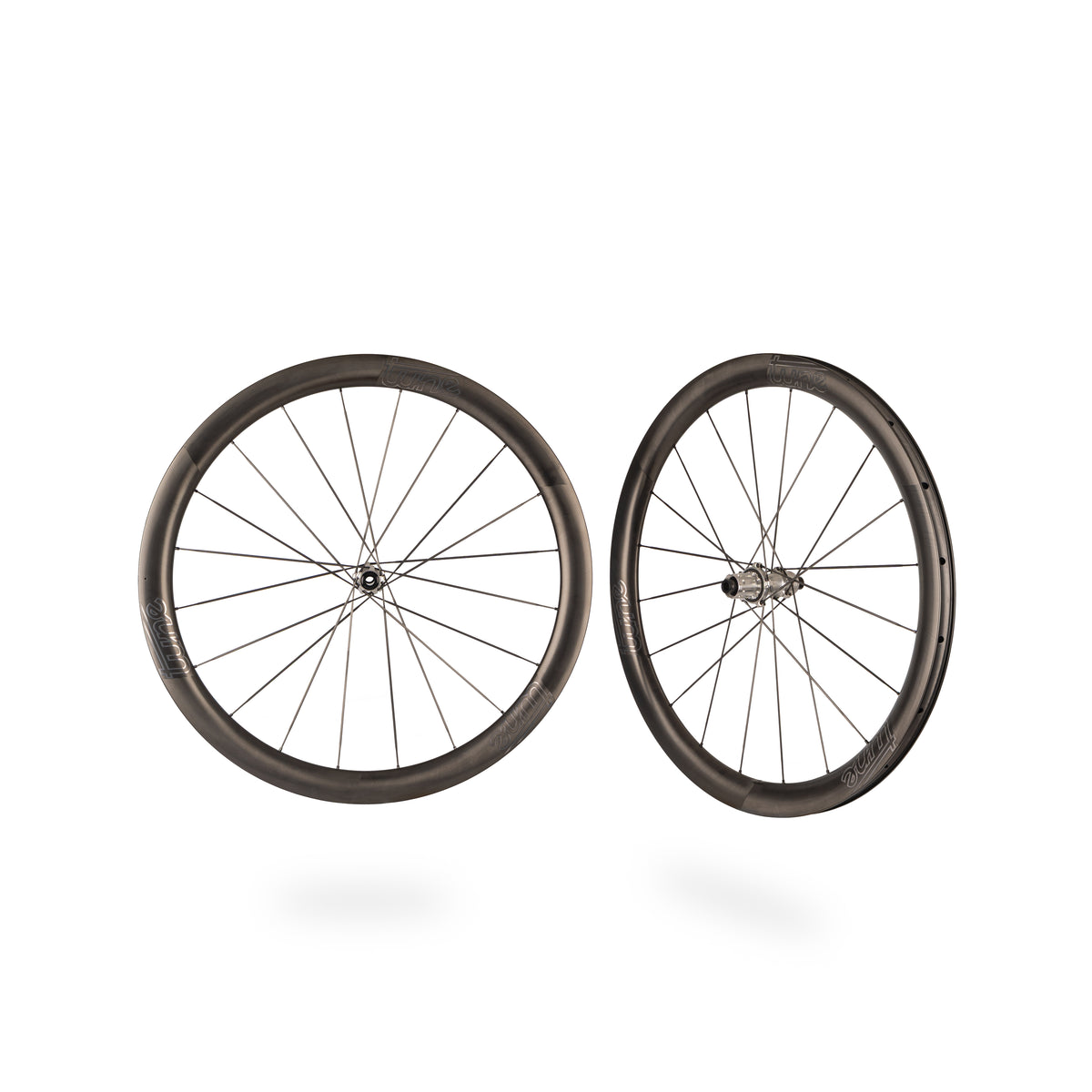

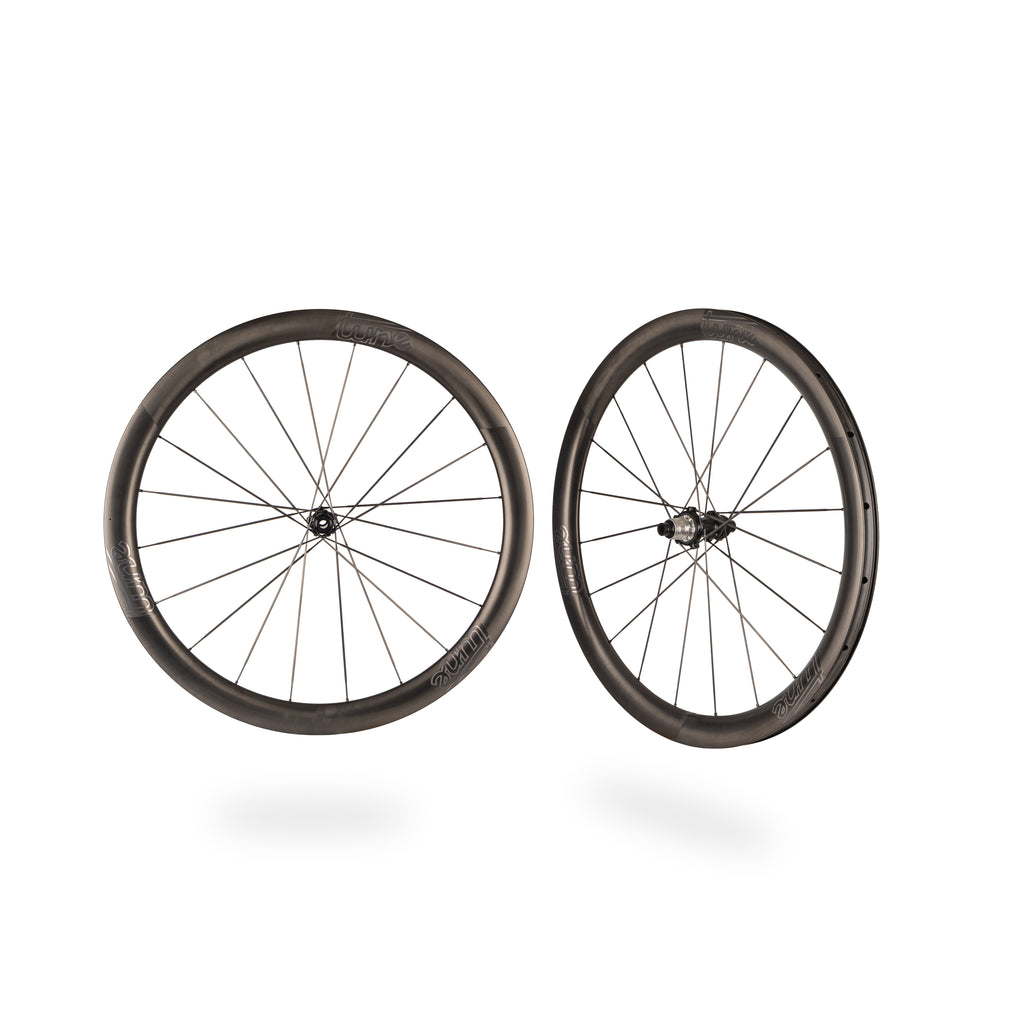

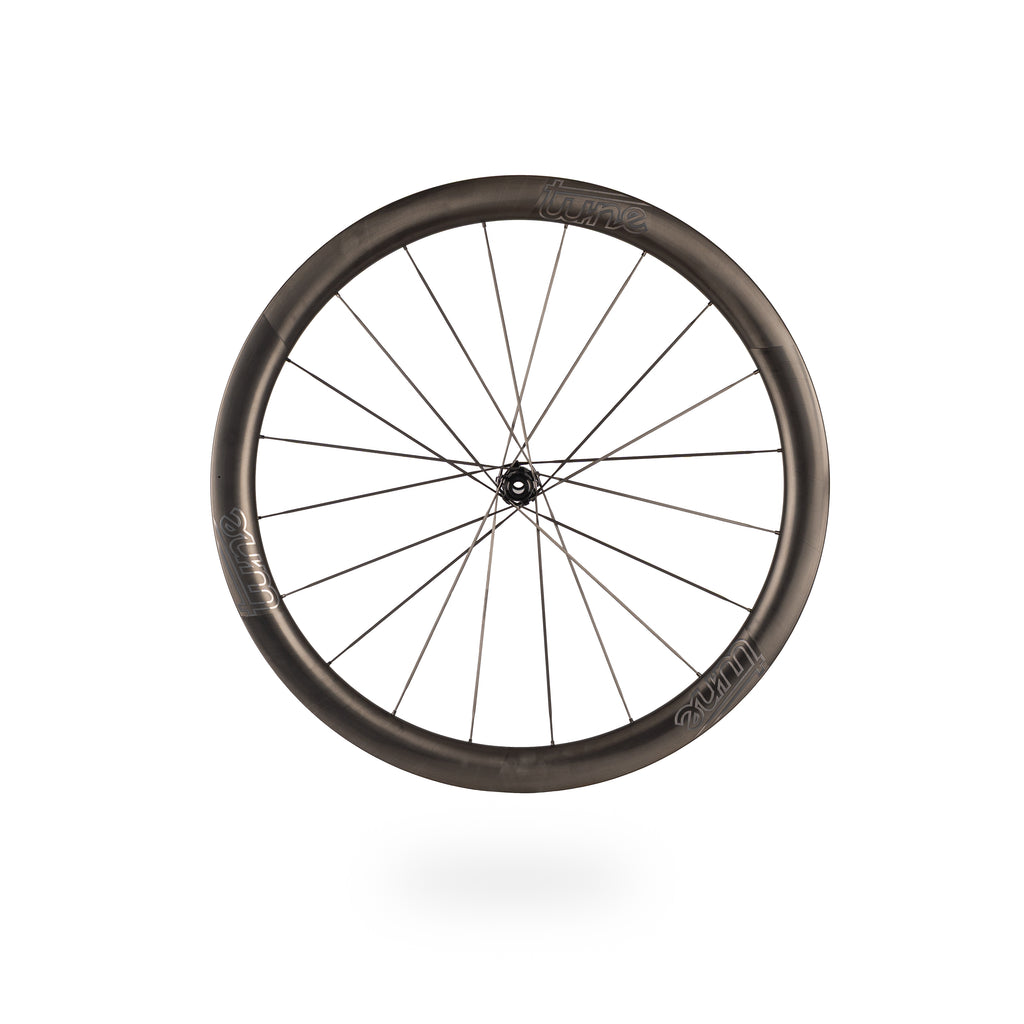

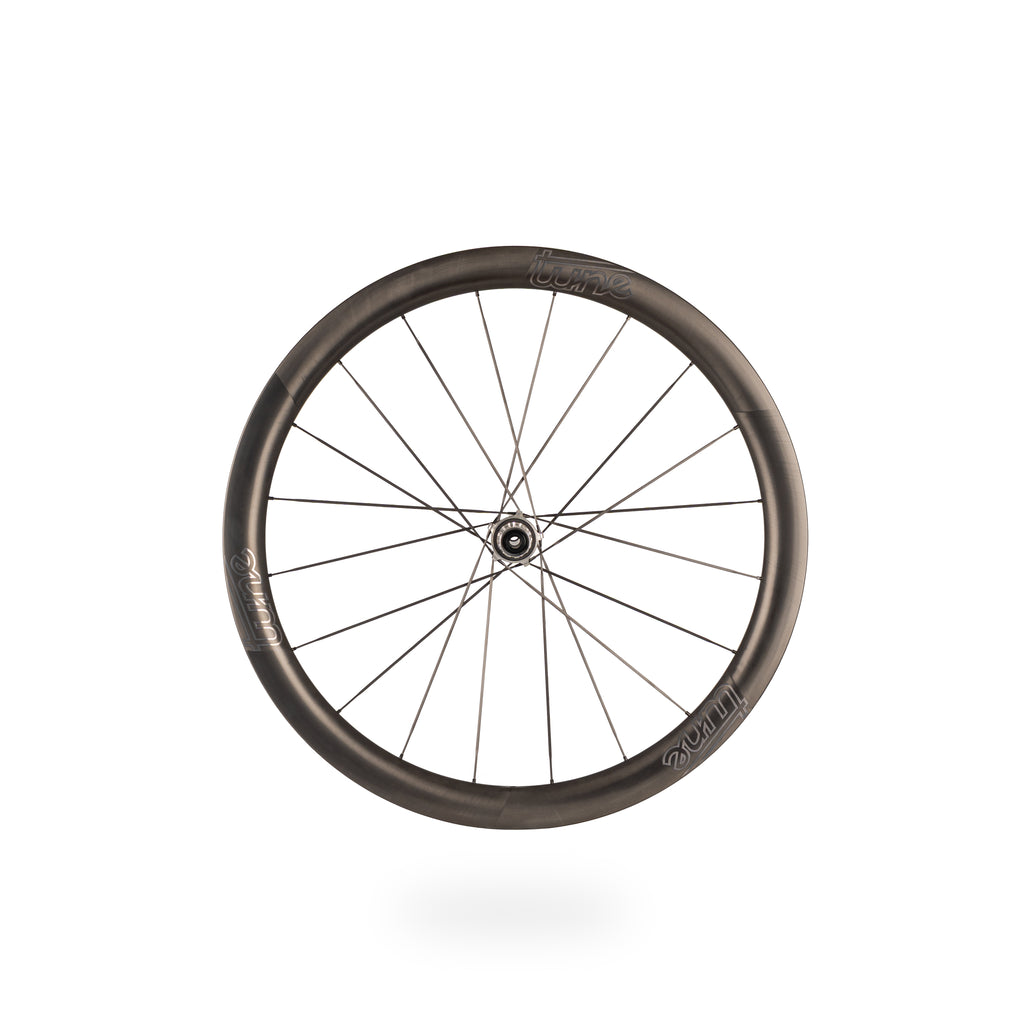

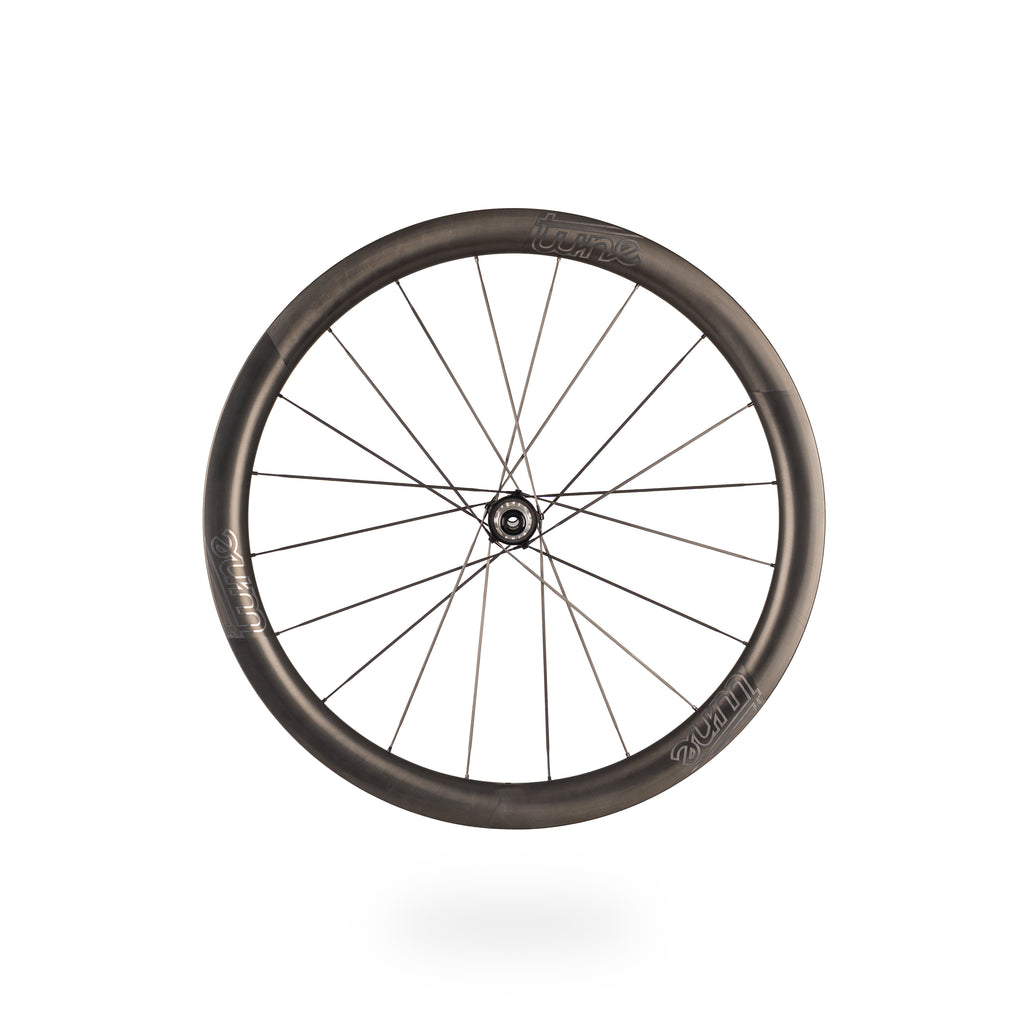

Wheelset Nano CS Road 45 Disc 700c

The Nano Road 45 CS is the balanced option in the Nano Road CS range.

With 45 mm hooked carbon rims and tune carbon aero spokes, it is designed for fast road riding, rolling terrain and everyday speed without focusing on only one performance target.

The 24 mm internal rim width is compatible with tires from 28 to 45 mm and optimized for 28 to 30 mm road tires.

At just 1250 g (+/- 3%), the Nano Road 45 CS balances aerodynamics, weight and lateral rigidity while still offering a maximum system weight of 130 kg. Like all other tune wheelsets, it comes with a full 10-year warranty.

Hub: Nano CS, POEtry 69 freewheel system, Enduro Bearings options
Spokes: 20/20 tune carbon aero spokes

The Nano CS hub platform is designed specifically for carbon-spoke wheel systems, helping the spokes align straight from hub to rim for a precise and efficient wheel build.

Whether you are racing, riding fast group rides or looking for one wheelset to cover most road conditions, the Nano Road 45 CS is built for speed, stability and everyday performance.

Technical data

Weight wheelset: 1250 g (+/- 3%)
UCI status: approved
Max. system weight: 130 kg
Max. rider weight: 120 kg
Max. pressure: 7 bar
Hub type: Nano CS 20 holes with POEtry 69 freewheel, 69 points of engagement and Enduro Bearings options. Freewheels available: HG, XDR, Microspline, N3W
Spokes: 20 pcs front and 20 pcs rear tune carbon aero spokes
Rim inner width: 24 mm front and rear
Rim outer width: 32 mm front and rear
Rim height: 45 mm front and rear
Rim standard: 700c clincher
Tubeless Ready: yes
Valve type: Tune tubeless valves, delivered with the wheelset
Tyre compatibility: compatible from 28 mm to 45 mm; optimized for 28 mm to 30 mm road tires
Colours: black or silver
Brake interface: Centerlock disc-brake interface
Axle standard: front: 100x12 mm, rear: 142x12 mm
Warranty: 10 years for the rims, hub bodies, axles and end caps; lifetime warranty for ceramic XD-15 ball bearings. Wear parts are not covered.

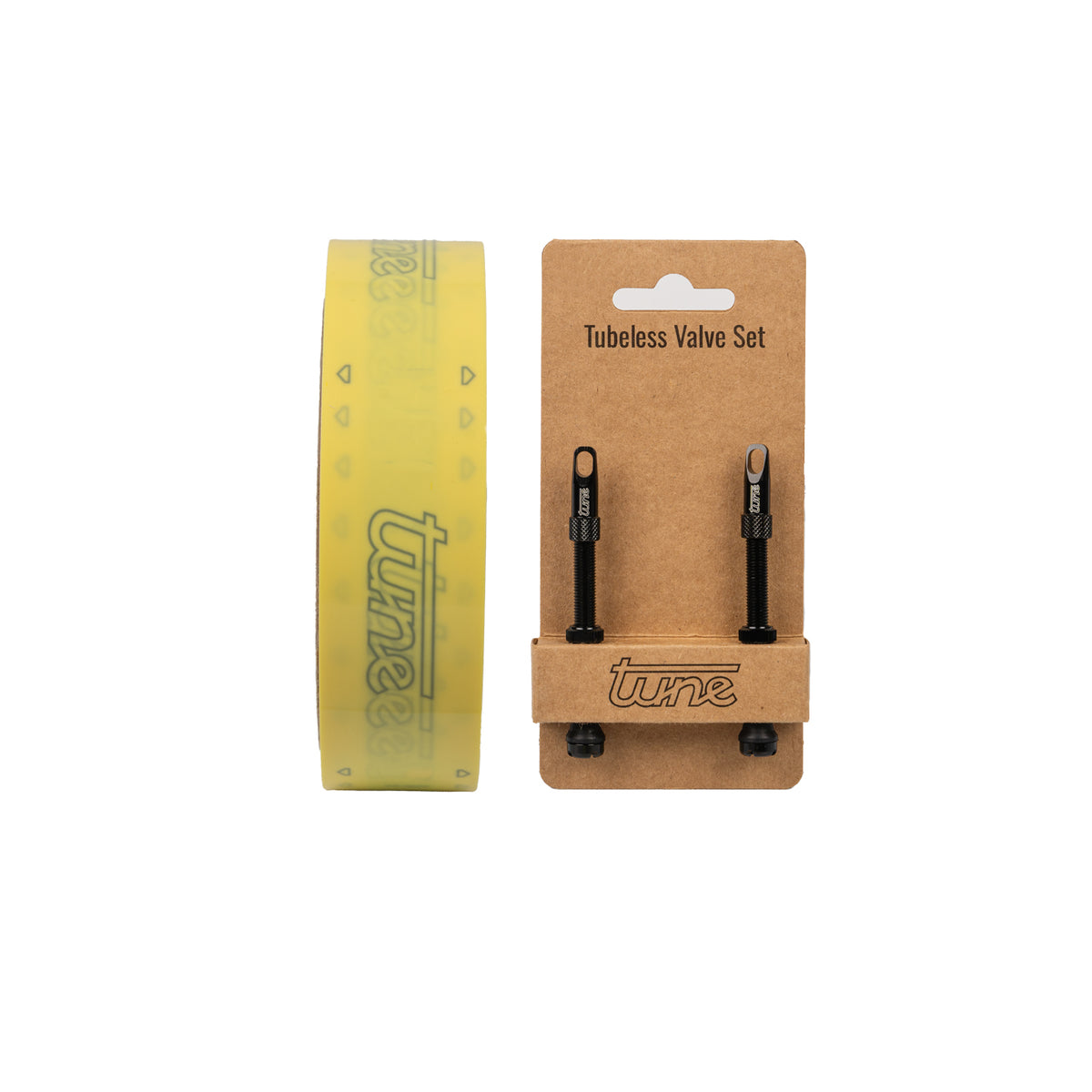

Scope of delivery: wheels and packaging, 2 spare carbon spokes with nipples, tubeless valves, rim tape
