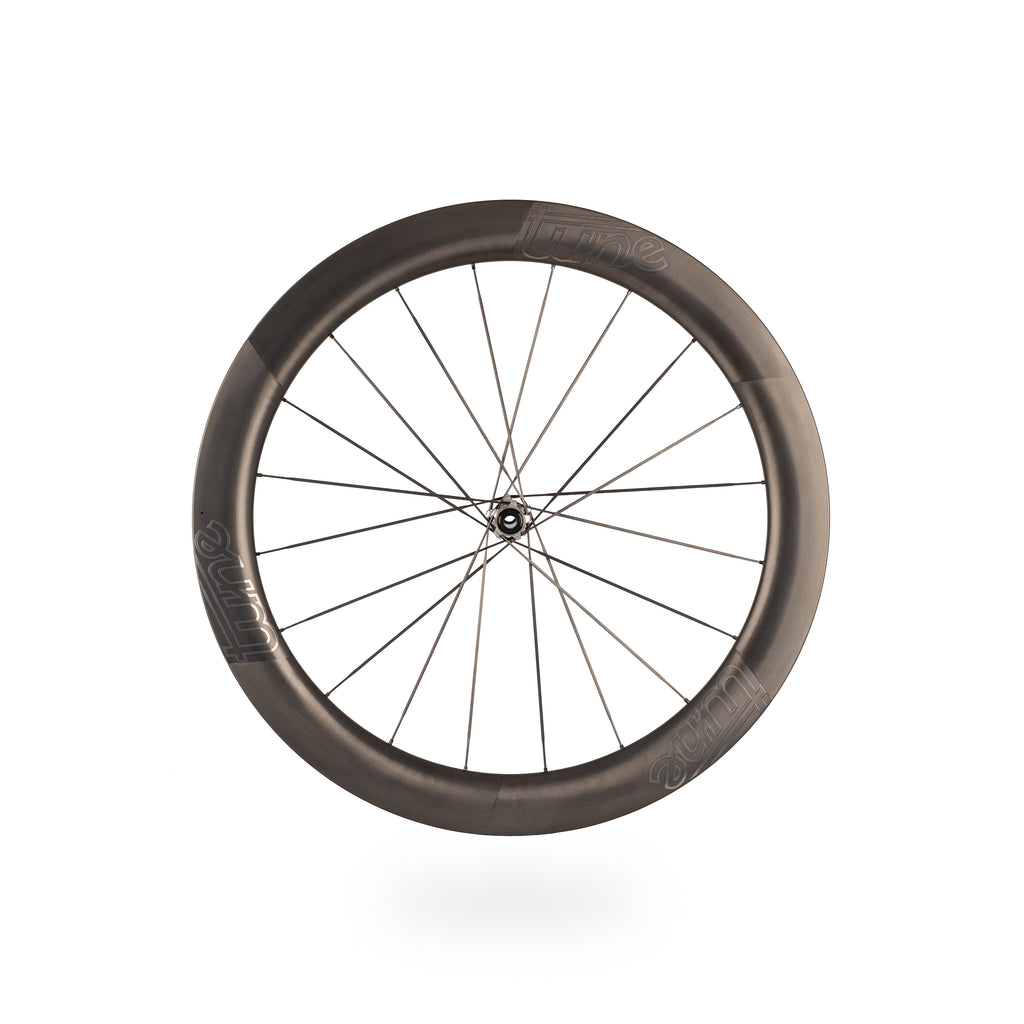

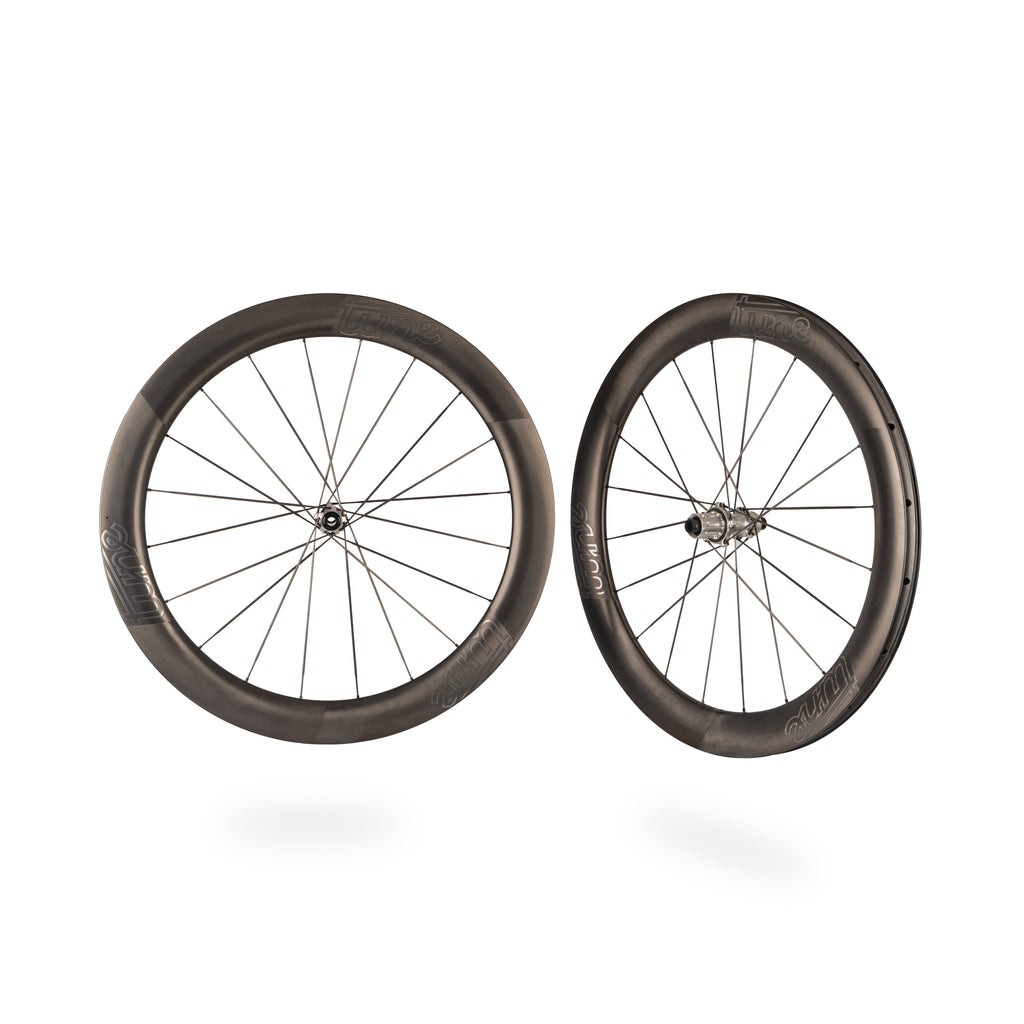

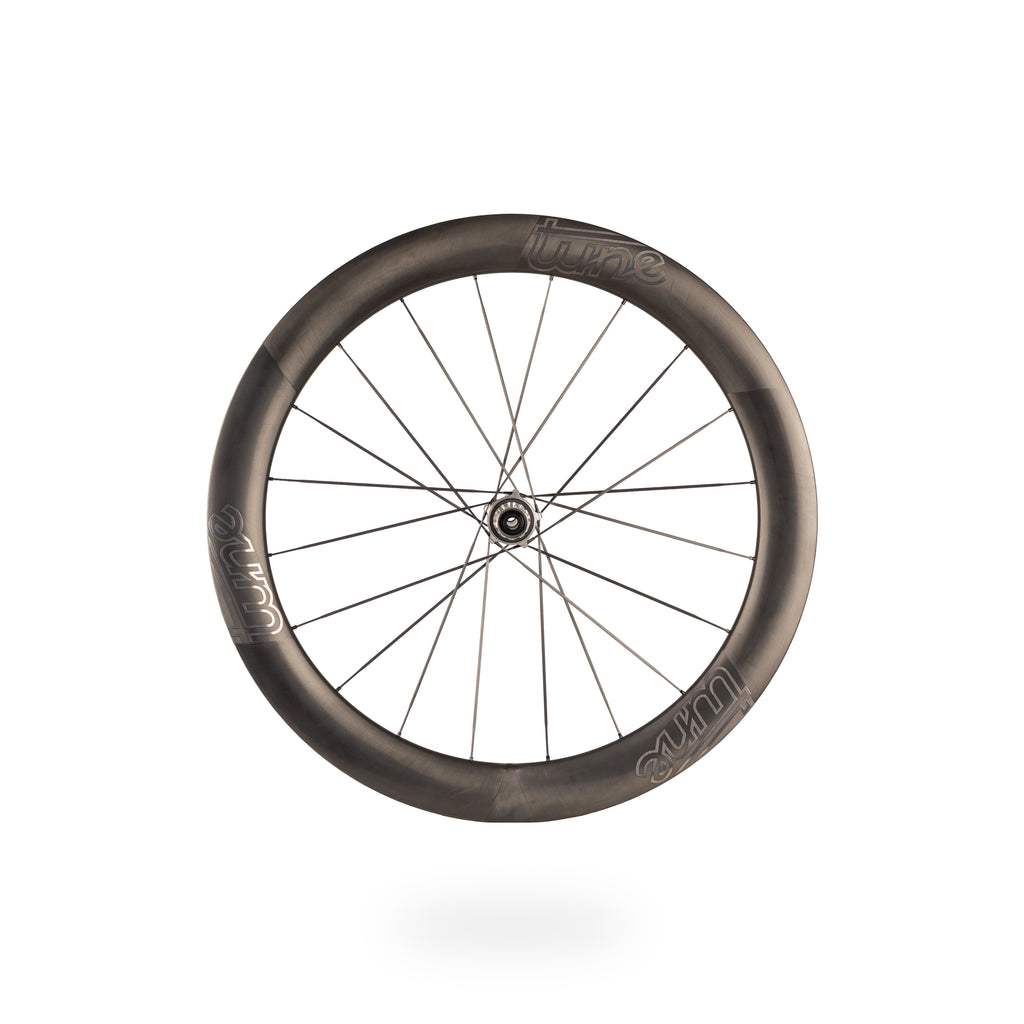

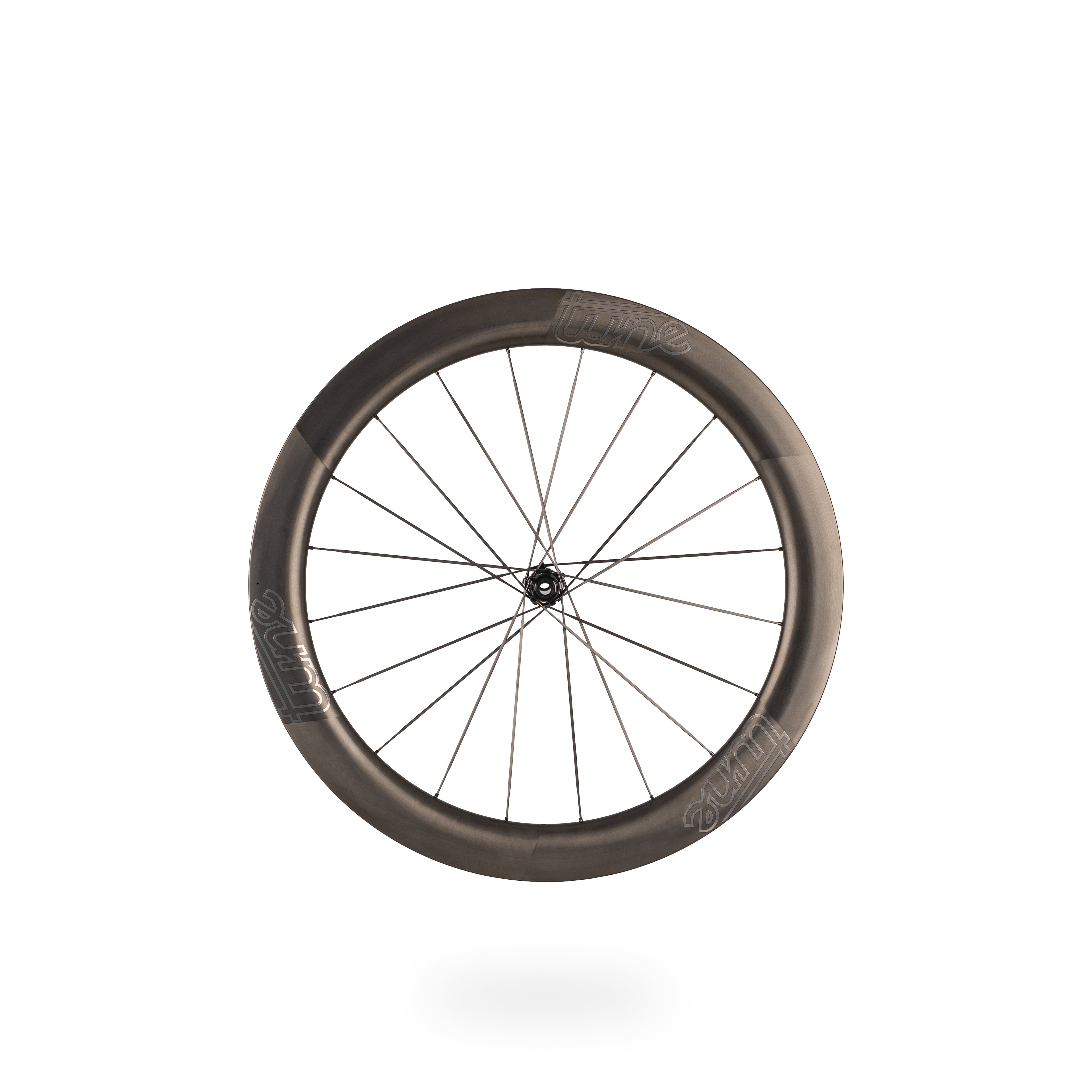

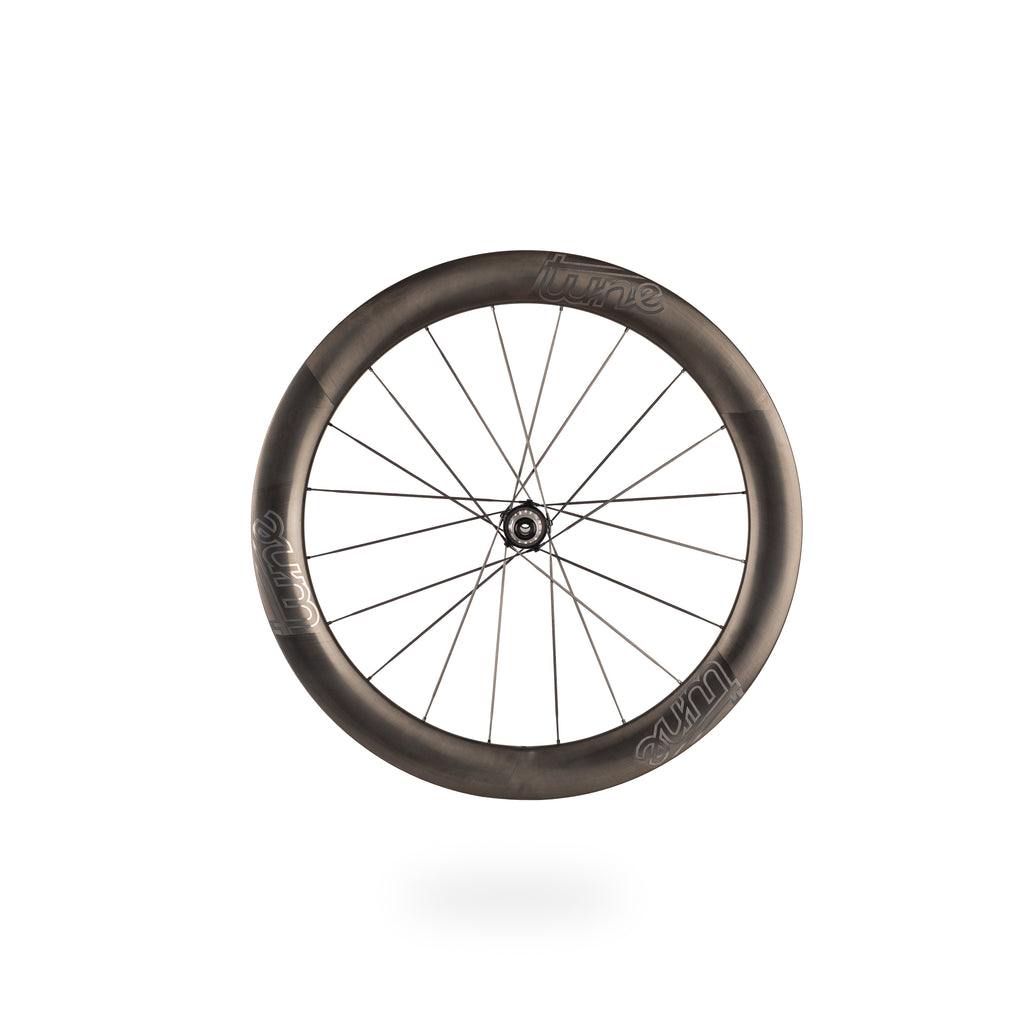

Wheelset Nano CS Road 60 Disc 700c

The Nano Road 60 CS is made for fast road riding, racing and riders who want maximum aerodynamic support at speed with the direct feel of tune carbon aero spokes.

With 60 mm hooked carbon rims and tune carbon aero spokes, it is designed for efficient airflow, stable handling and high-speed road performance.

The 24 mm internal rim width is compatible with tires from 28 to 45 mm and optimized for 28 to 30 mm road tires.

At just 1350 g (+/- 3%), the Nano Road 60 CS combines deep-section aerodynamics with the low weight and direct response of the Nano CS carbon-spoke platform. Like all other tune wheelsets, it comes with a full 10-year warranty.

Hub: Nano CS, POEtry 69 freewheel system, Enduro Bearings options
Spokes: 20/20 tune carbon aero spokes

The Nano CS hub platform is designed specifically for carbon-spoke wheel systems, helping the spokes align straight from hub to rim for a precise and efficient wheel build.

Whether you are racing, sprinting or riding fast road sections, the Nano Road 60 CS is built to hold speed efficiently and stay responsive under load.

Technical data

Weight wheelset: 1350 g (+/- 3%)
UCI status: approved
Max. system weight: 130 kg
Max. rider weight: 120 kg
Max. pressure: 7 bar
Hub type: Nano CS 20 holes with POEtry 69 freewheel, 69 points of engagement and Enduro Bearings options. Freewheels available: HG, XDR, Microspline, N3W
Spokes: 20 pcs front and 20 pcs rear tune carbon aero spokes
Rim inner width: 24 mm front and rear
Rim outer width: 32 mm front and rear
Rim height: 60 mm front and rear
Rim standard: 700c clincher
Tubeless Ready: yes
Valve type: Tune tubeless valves, delivered with the wheelset
Tyre compatibility: compatible from 28 mm to 45 mm; optimized for 28 mm to 30 mm road tires
Colours: black or silver
Brake interface: Centerlock disc-brake interface
Axle standard: front: 100x12 mm, rear: 142x12 mm
Warranty: 10 years for the rims, hub bodies, axles and end caps; lifetime warranty for ceramic XD-15 ball bearings. Wear parts are not covered.

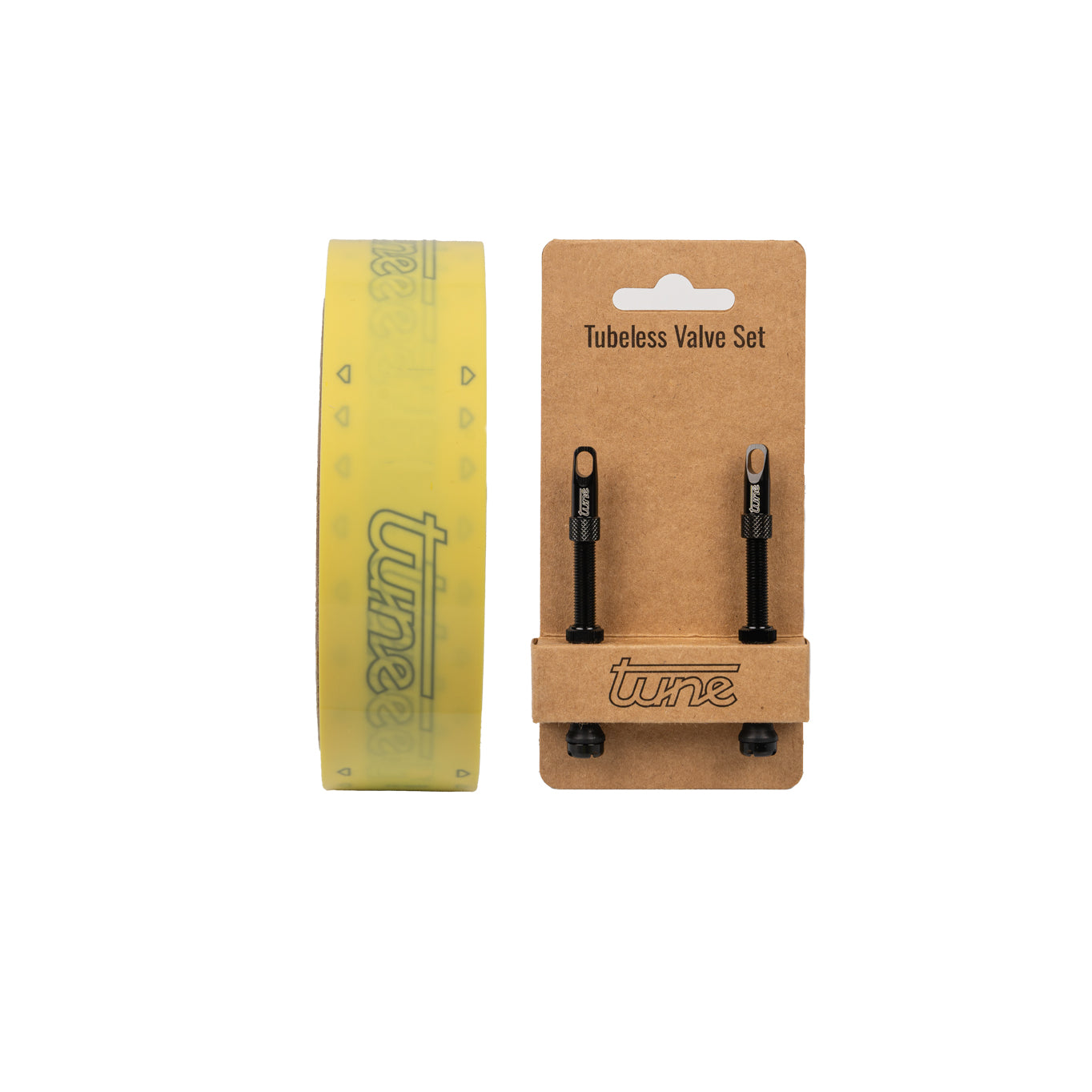

Scope of delivery: wheels and packaging, 2 spare carbon spokes with nipples, tubeless valves, rim tape
