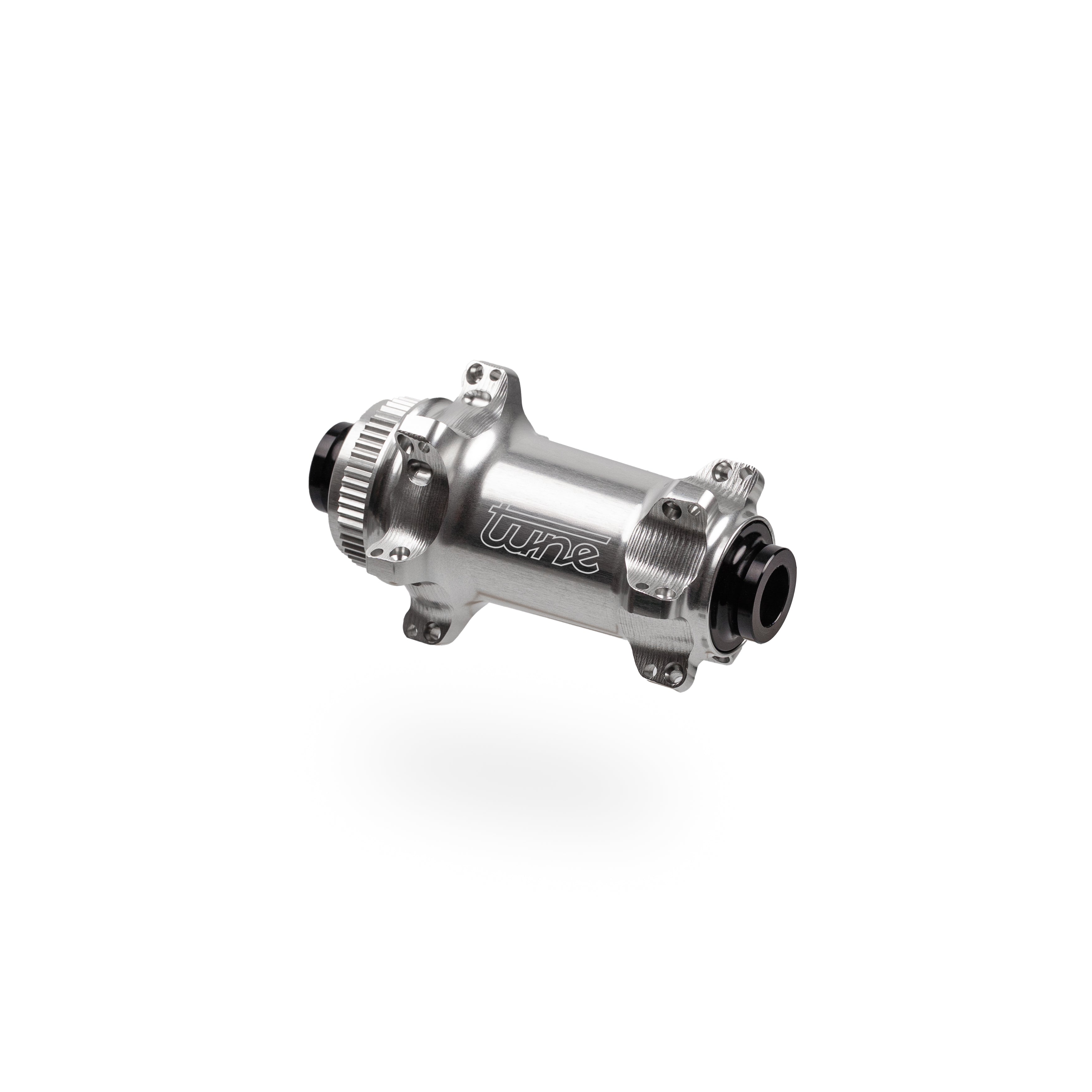

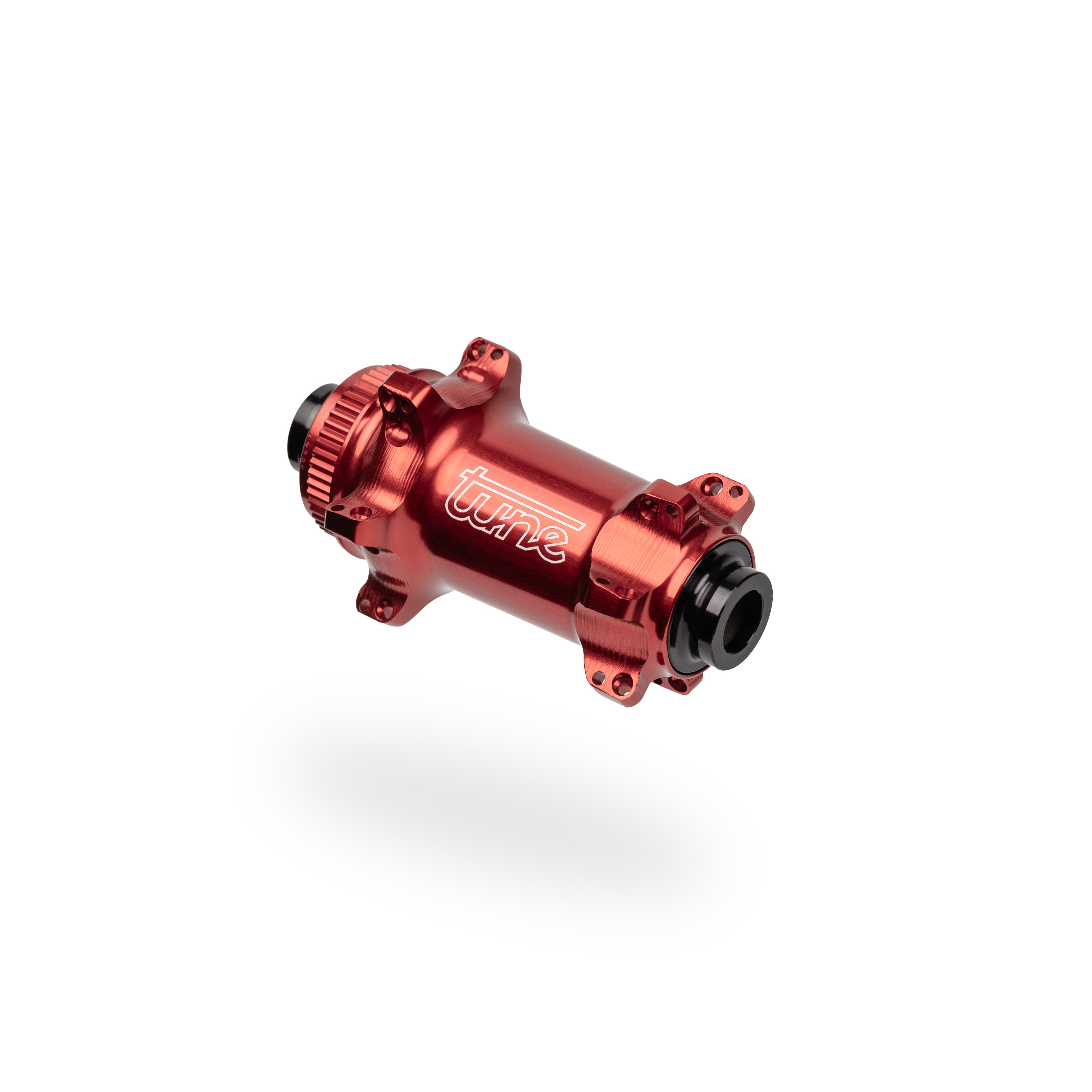

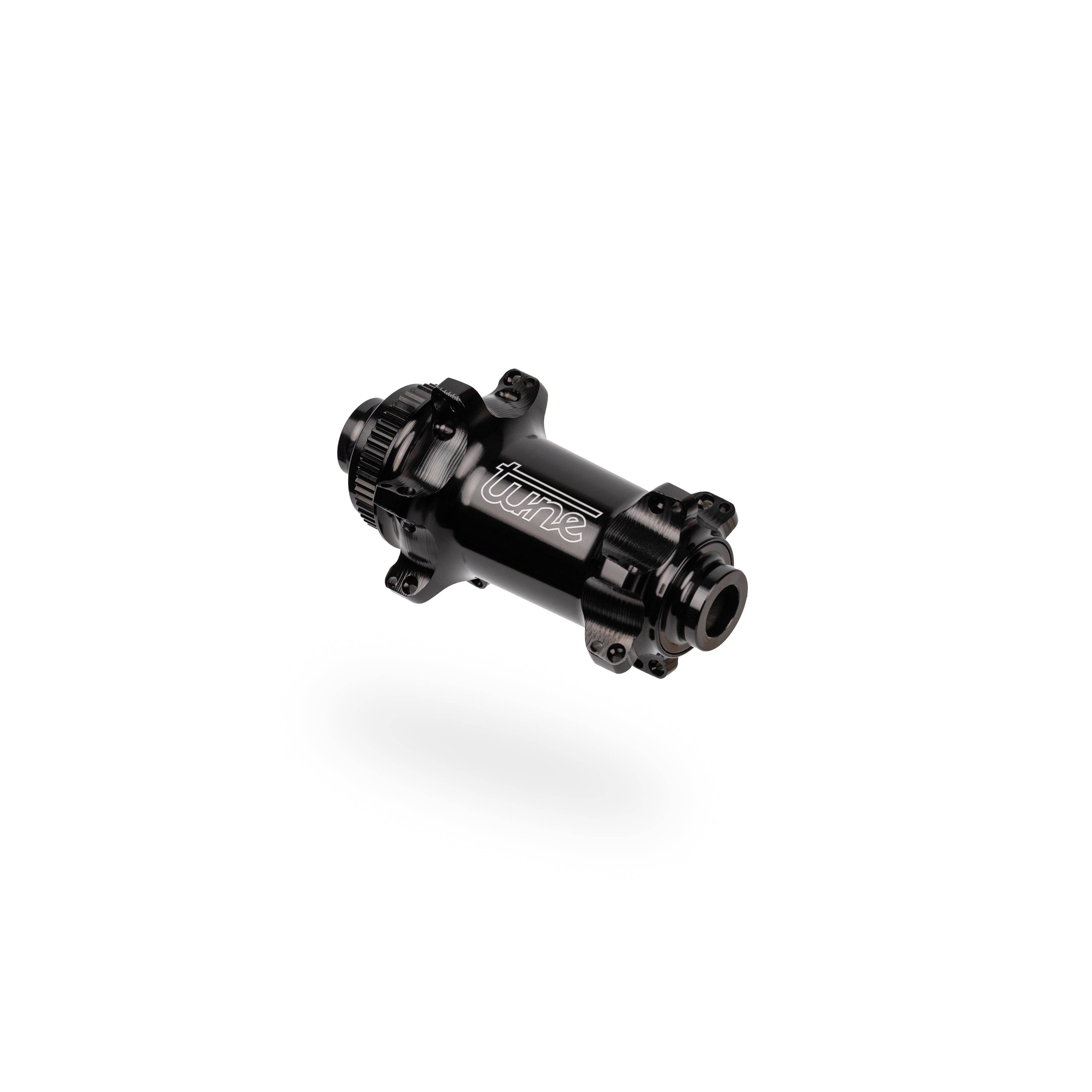

Nano CL front hub

Nano – Your New Mid-Range Hub Set at Tune

Aha, it looks like someone is searching for a truly lightweight hub. You're in the right place! Nano is our new mid-range hub set. Not the absolute top model (that’s Yokto, as you know), but pretty darn close! We've designed a completely new hub set with changes that will help you achieve your sporting goals.

A sleek, conical design paired with Straight Pull flanges makes this hub a real eye-catcher. And the fact that the front hub now has a new flange that does not require a carbon ring will also please your wheel builder. But this change also benefits the rider, as the symmetrical design creates optimal balance for the front wheel. Weighing only 290g (+/- 3%), this hub set is one of the lightest we offer.

Additional improvements include:

• New axle: The use of shims is no longer necessary.
• Conical design and Straight Pull flanges: Give the hub set a dynamic and modern look.
• Improved seals: Increase the weather resistance of the hub.
• Newly designed freewheel system: Standard with 69
• engagement points, optionally expandable to 138 engagement points (three additional pawls need to be purchased for this).
• New heat-treated steel pawls: Improve the durability of the freewheel system.
• Optional bearings: Enduro Bearings ABEC-5 steel bearings or Enduro Bearings XD-15 ceramic bearings with a lifetime warranty.

Is Straight Pull your thing and saving weight too? Then Nano is the right choice for you. Whether road or gravel, this hub set will help you achieve new heights in both disciplines. And as always: This hub set is also handmade here in Buggingen, Germany.

Technical data

weight from: 93g
colours: 3 different: black, silver, red
Brake interface: Centerlock disc brake only
Max. Spoke tension: 1100N
Max. rider weight: 120kg
Max. system weight: 130kg
scope of delivery: hub with the packaging
axle standard: 12mm x 100mm
Warranty: 10 years on the hubshell, endcaps and axle. Lifetime on the XD-15 ceramic bearings. Wear parts are not covered.
notes: Spoke length calculator
for more information please refer to the user manual
