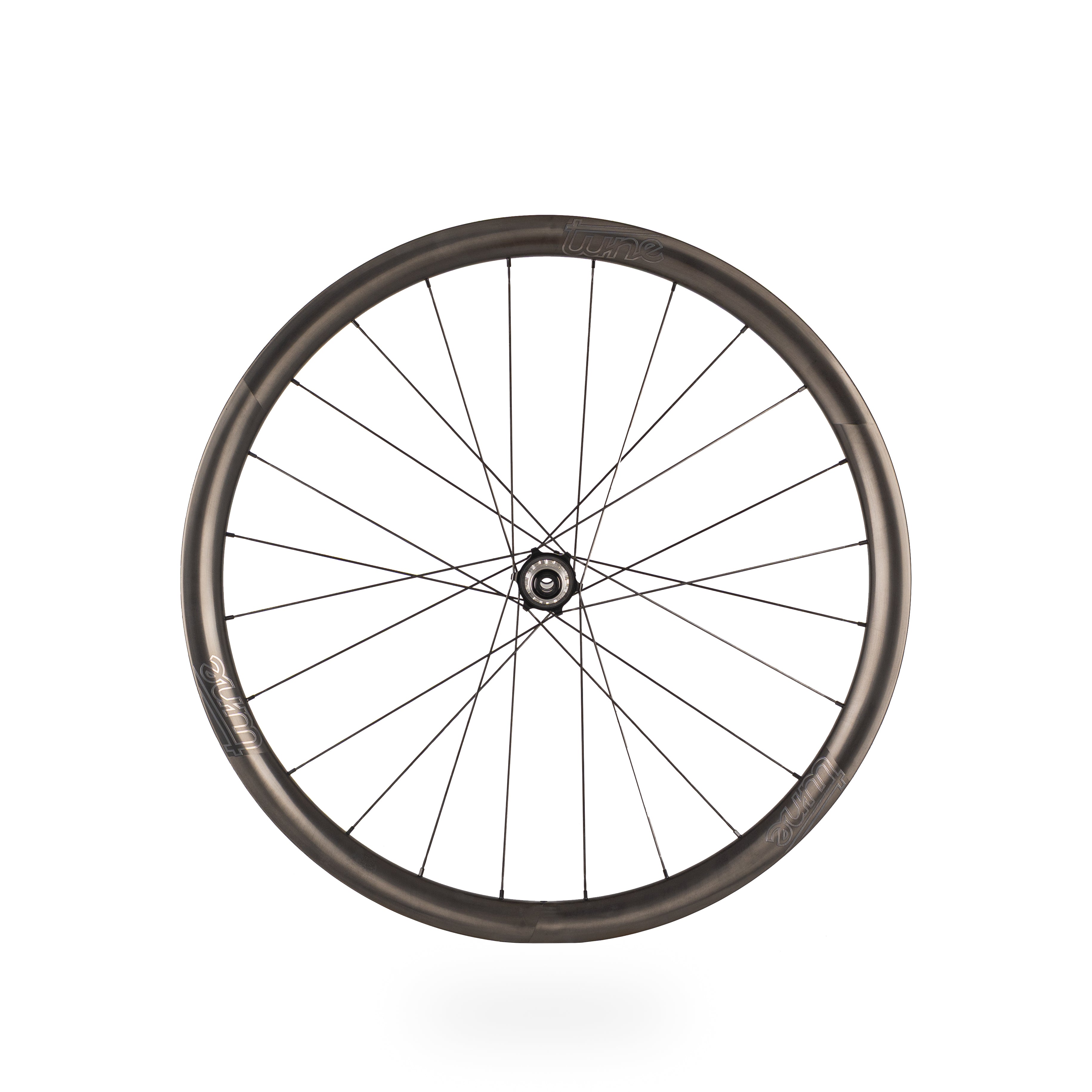

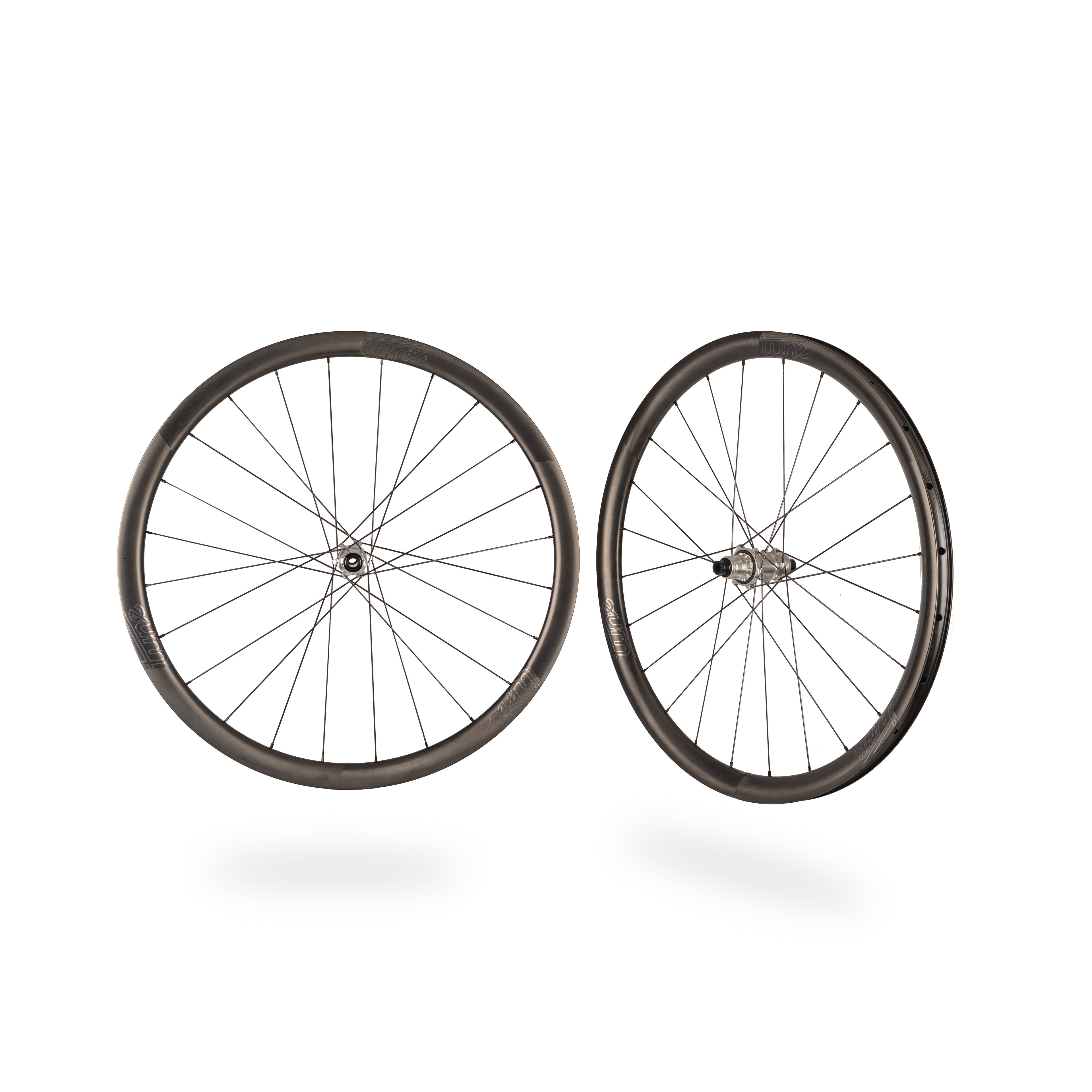

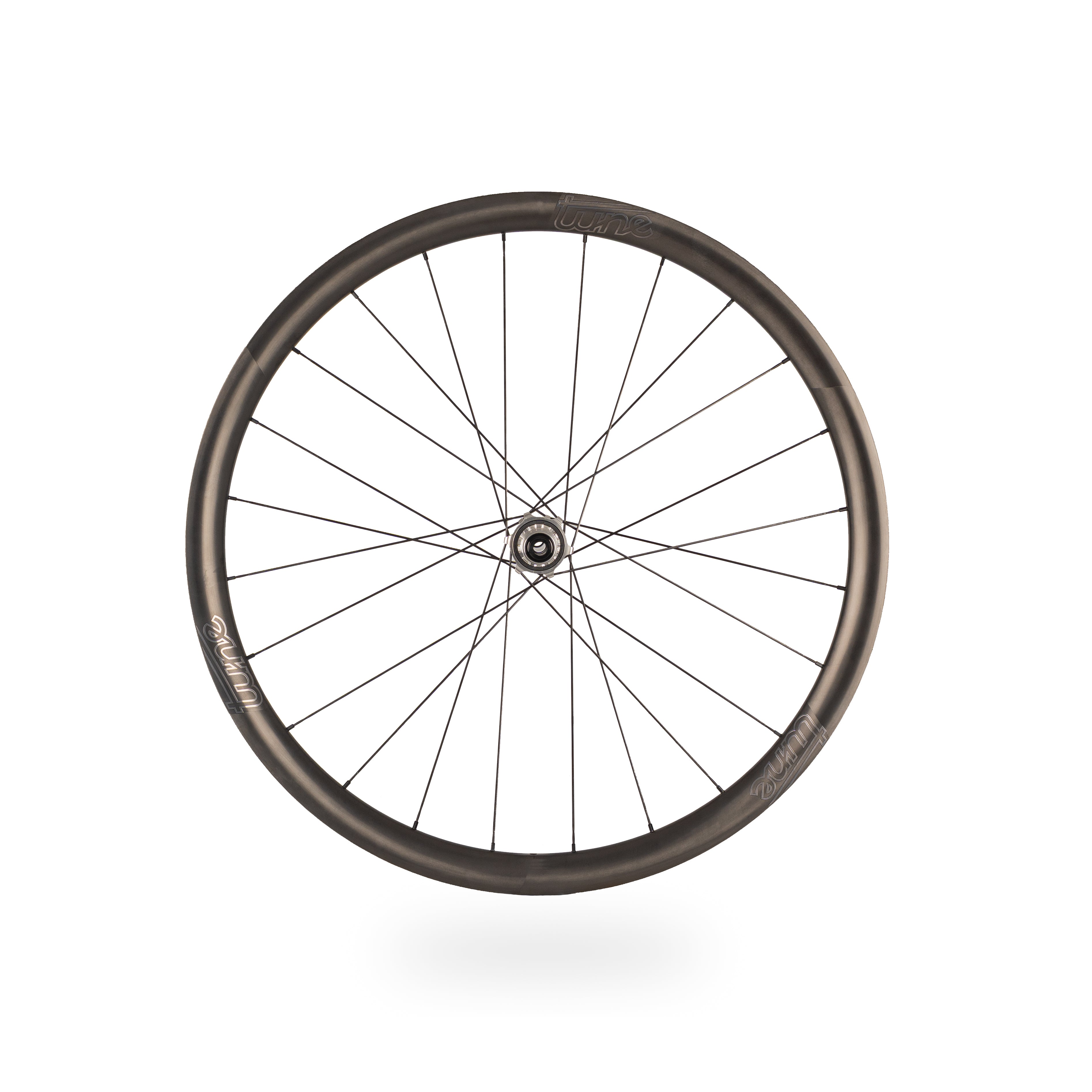

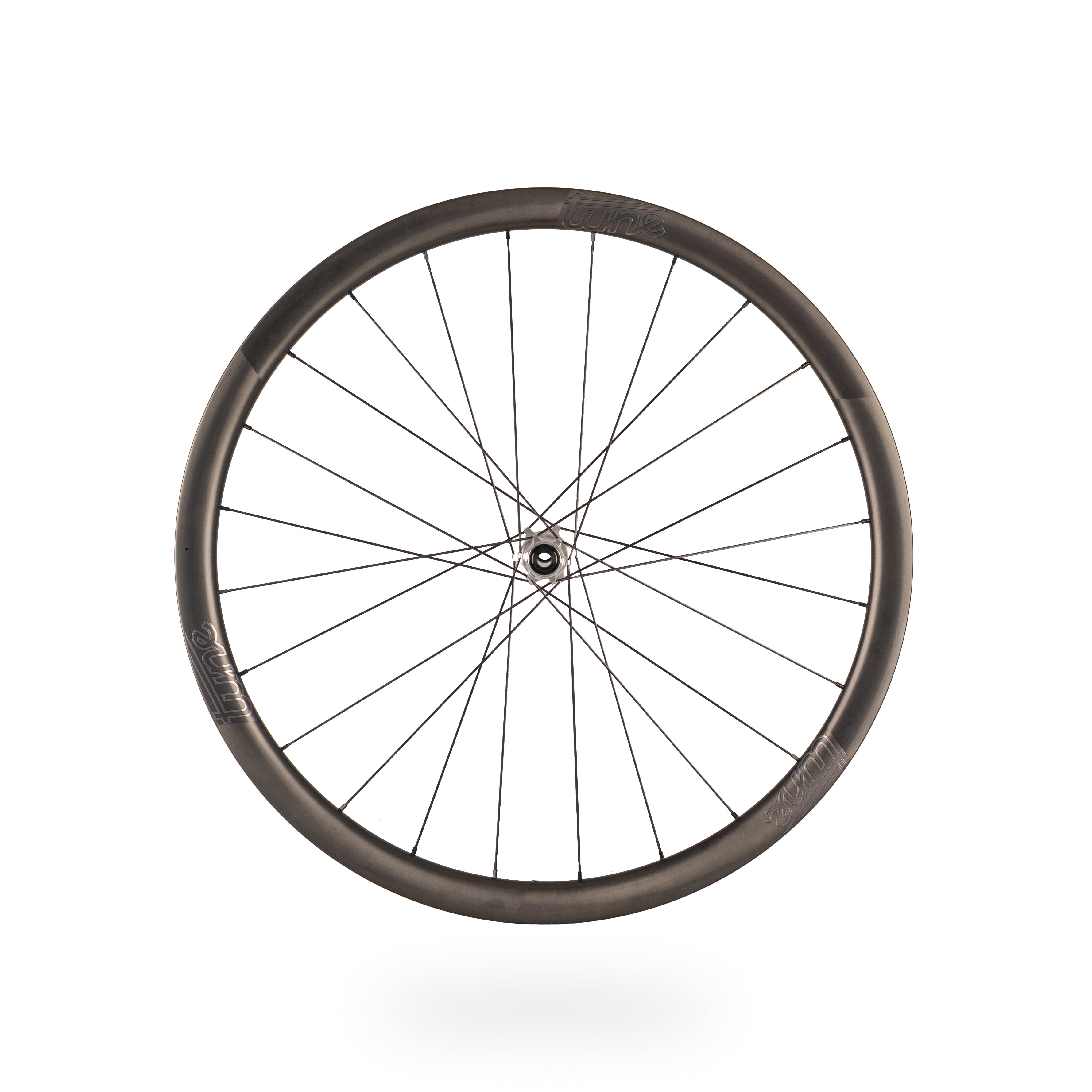

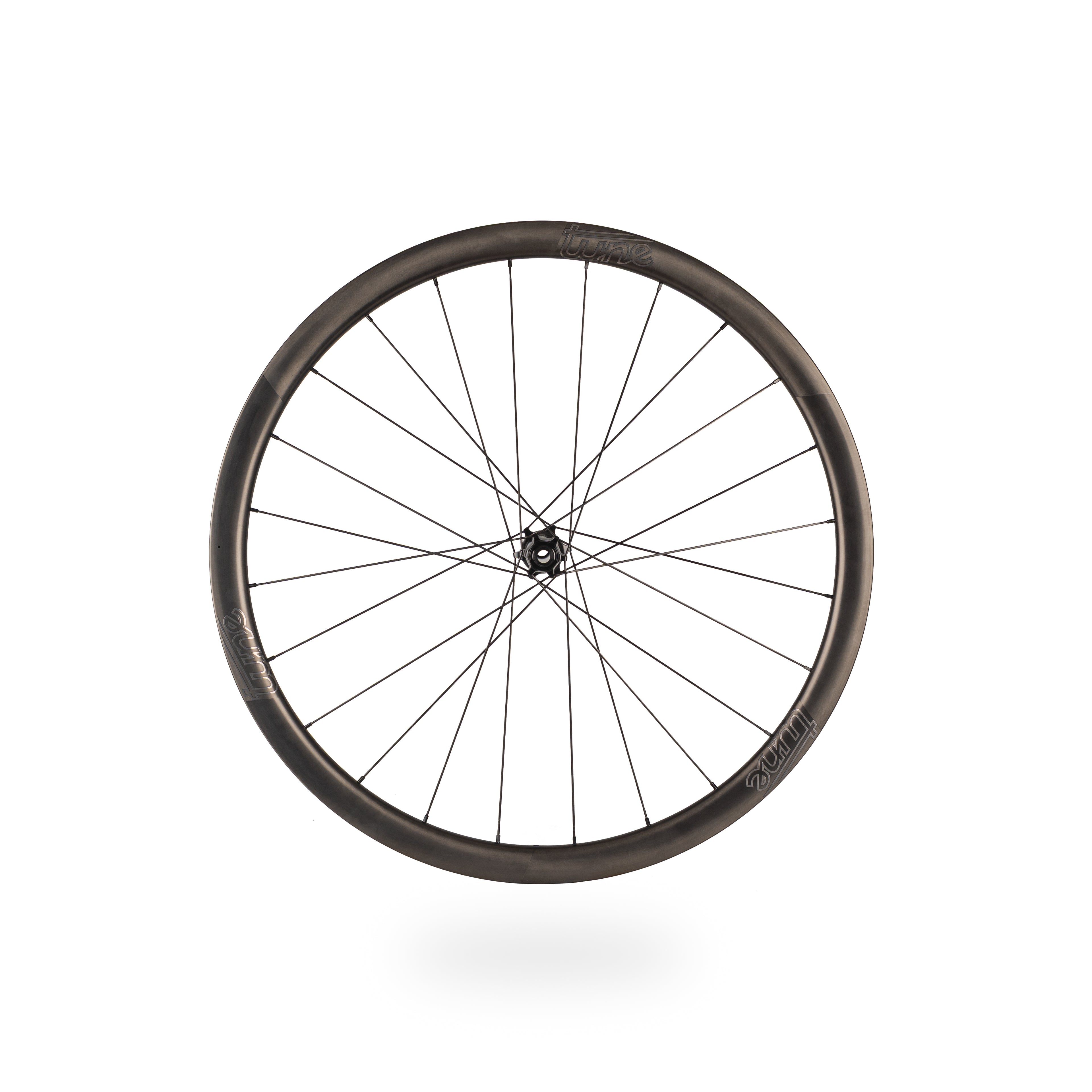

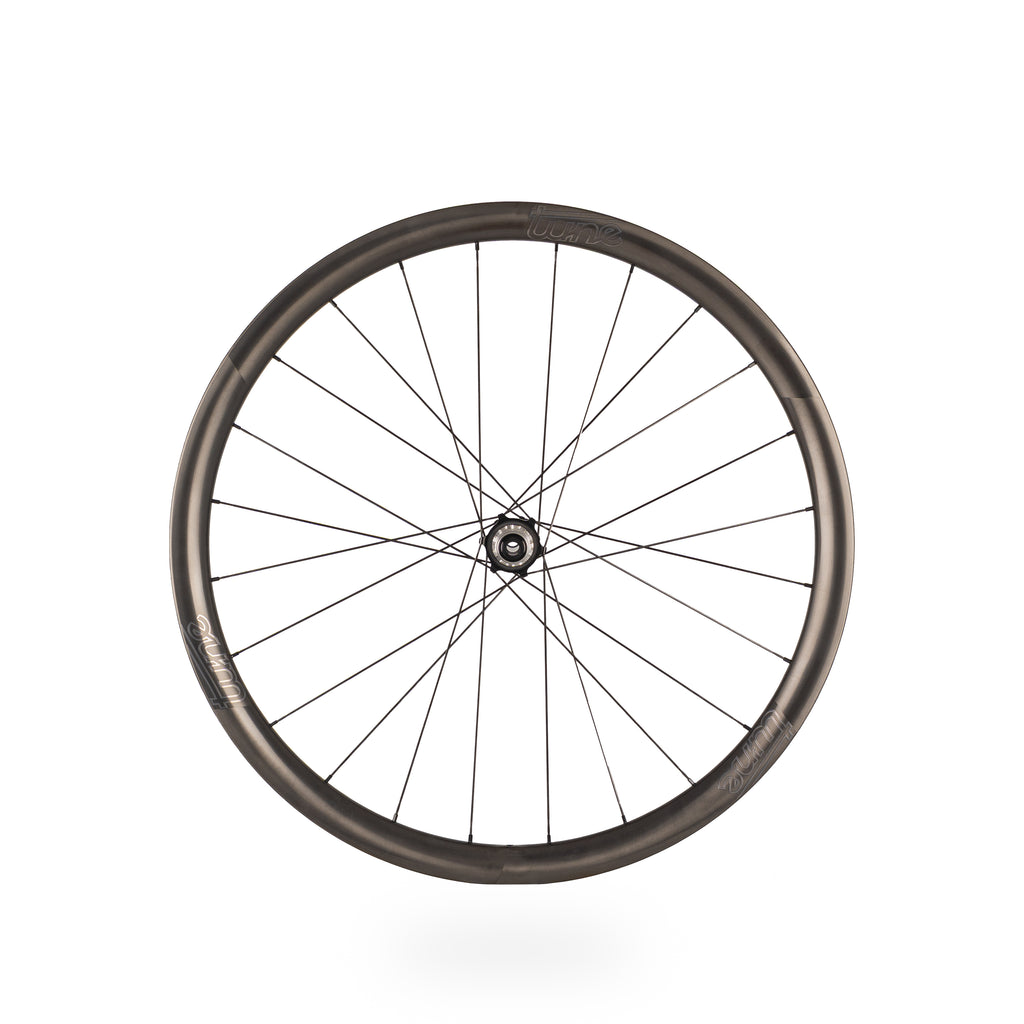

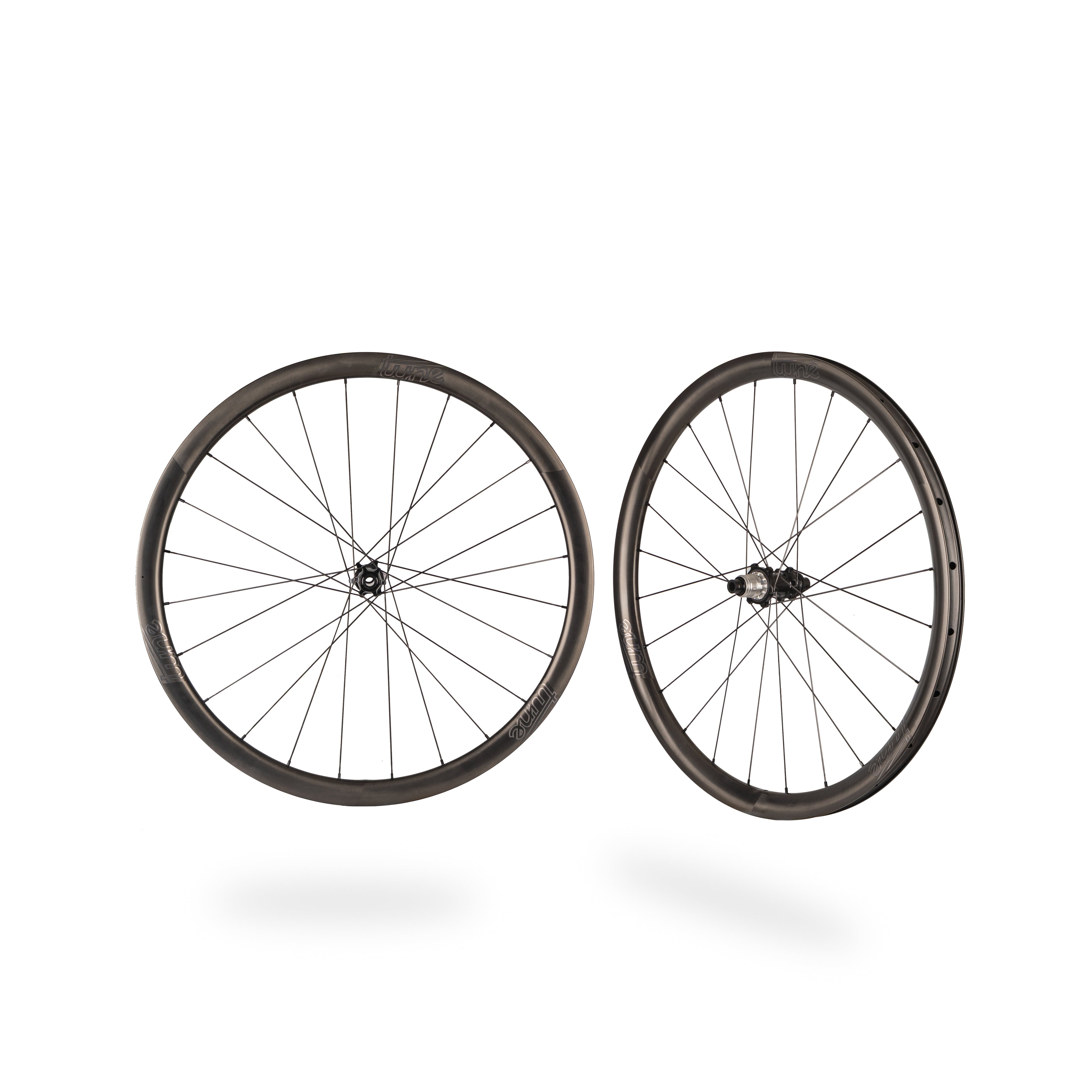

Wheelset Nano Road 35 Disc 700c

The Nano Road 35 is the lightest steel-spoke wheelset in the Nano Road range.

With 35 mm hooked carbon rims and Sapim CX-Ray spokes, it is built for climbing, light all-road use and riders who want a low system weight with classic serviceability.

The 24 mm internal rim width is compatible with tires from 28 to 45 mm and optimized for 28 to 30 mm road tires.

At just 1280 g (+/- 3%), the Nano Road 35 combines low weight with a maximum system weight of 130 kg. Like all other tune wheelsets, it comes with a full 10-year warranty.

Hub: Nano, POEtry 69 freewheel system, Enduro Bearings options
Spokes: 24/24 Sapim CX-Ray

The Nano hub platform is built for low weight, easy service and reliable road performance with proven steel-spoke construction.

Whether you are climbing, riding long road days or looking for a lightweight road wheelset with standard spokes, the Nano Road 35 is built to keep the bike fast, responsive and easy to handle.

Technical data

Weight wheelset: 1280 g (+/- 3%)
UCI status: approved
Max. system weight: 130 kg
Max. rider weight: 120 kg
Max. pressure: 7 bar
Hub type: Nano 24 holes with POEtry 69 freewheel, 69 points of engagement and Enduro Bearings options. Freewheels available: HG, XDR, Microspline, N3W
Spokes: 24 pcs front and 24 pcs rear Sapim CX-Ray
Rim inner width: 24 mm front and rear
Rim outer width: 32 mm front and rear
Rim height: 35 mm front and rear
Rim standard: 700c clincher
Tubeless Ready: yes
Valve type: Tune tubeless valves, delivered with the wheelset
Tyre compatibility: compatible from 28 mm to 45 mm; optimized for 28 mm to 30 mm road tires
Colours: black or silver
Brake interface: Centerlock disc-brake interface
Axle standard: front: 100x12 mm, rear: 142x12 mm
Warranty: 10 years for the rims, hub bodies, axles and end caps; lifetime warranty for ceramic XD-15 ball bearings. Wear parts are not covered.

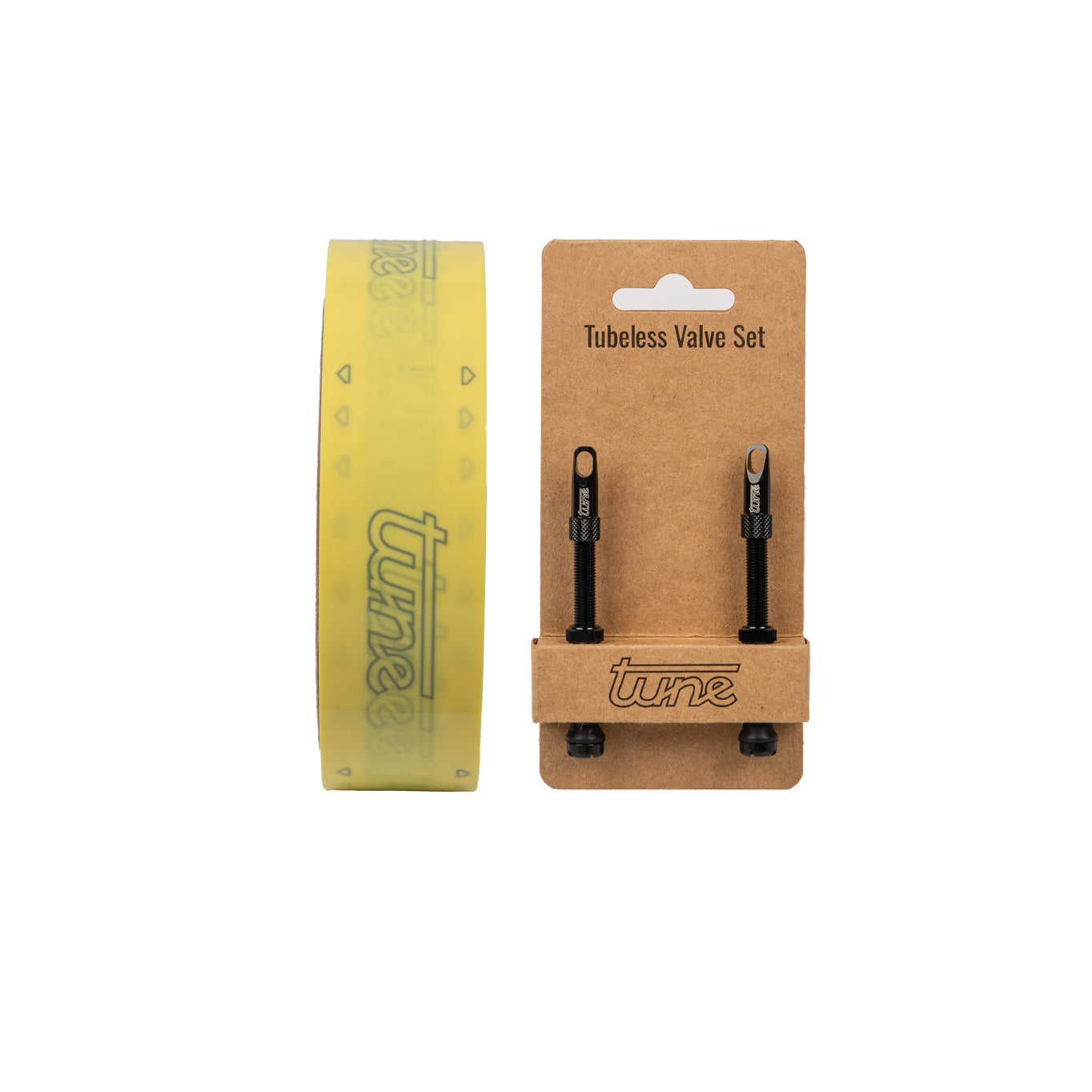

Scope of delivery: wheels and packaging, tubeless valves, rim tape
