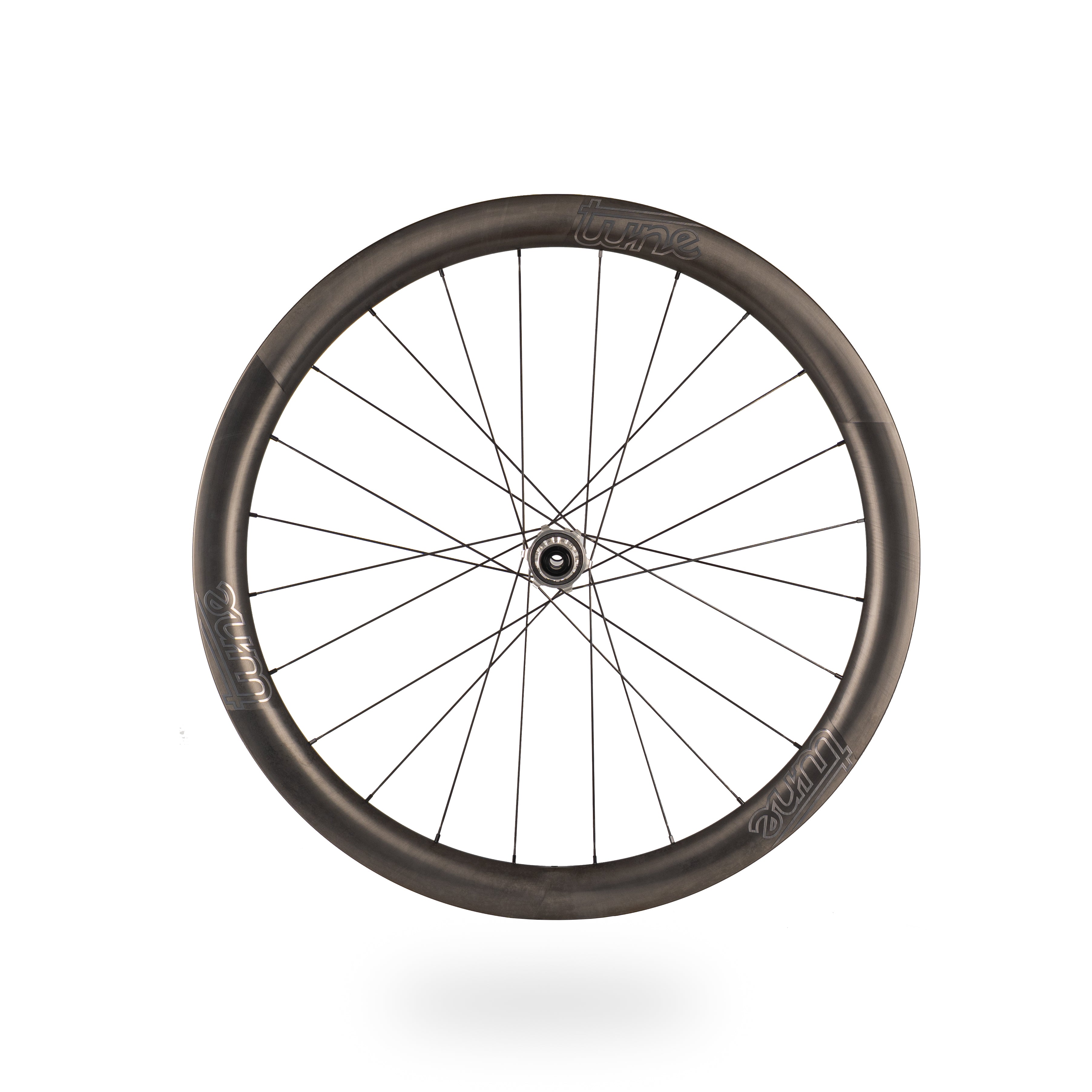

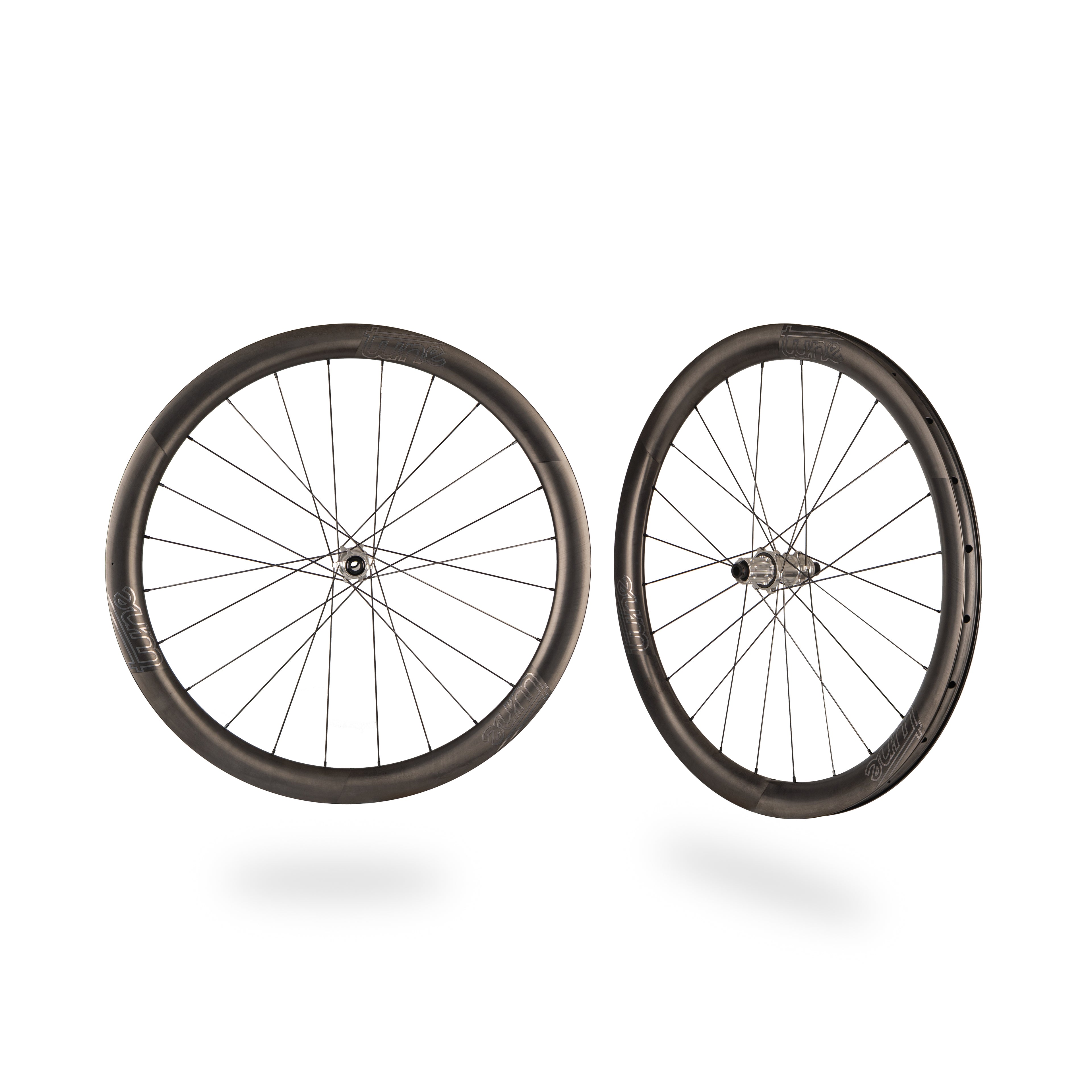

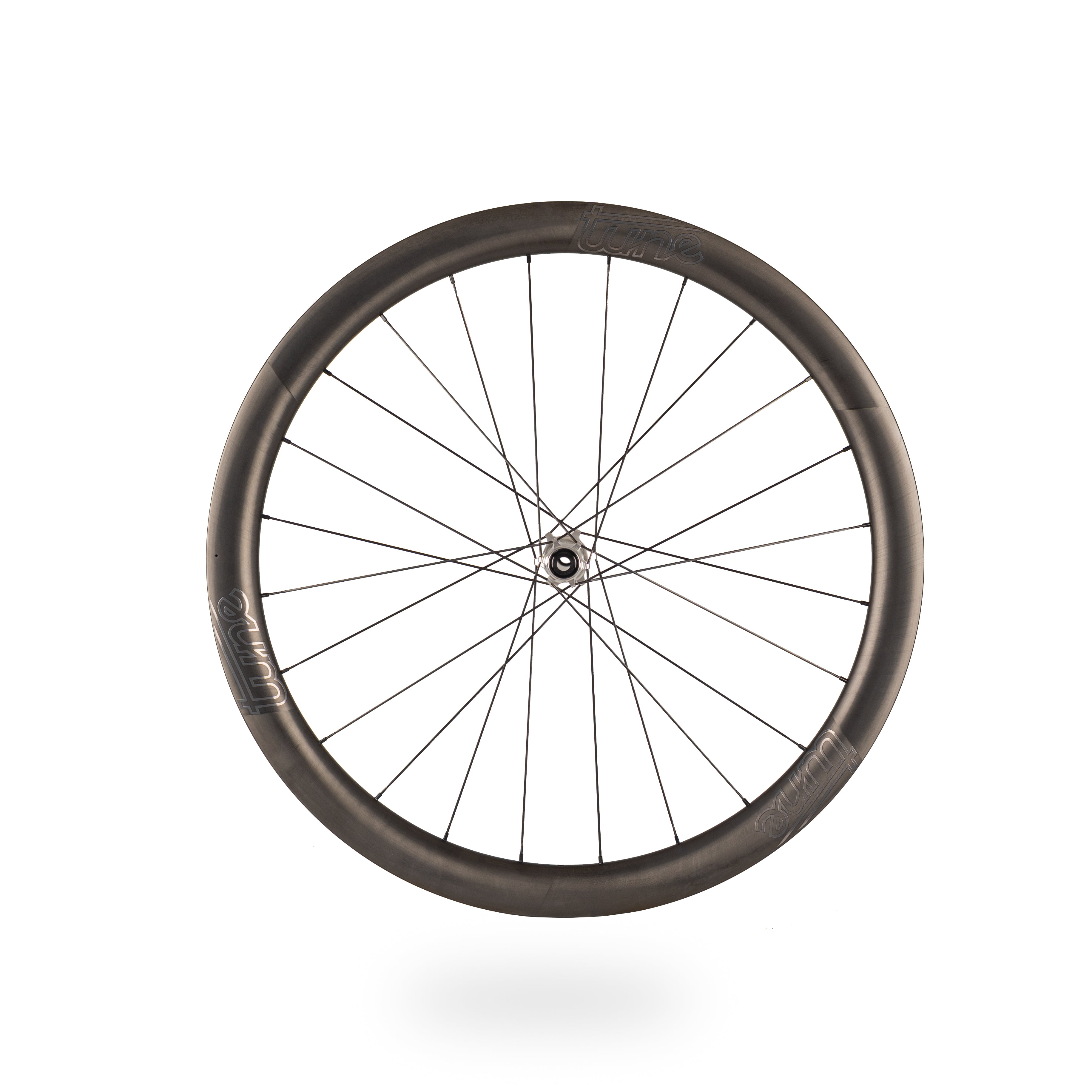

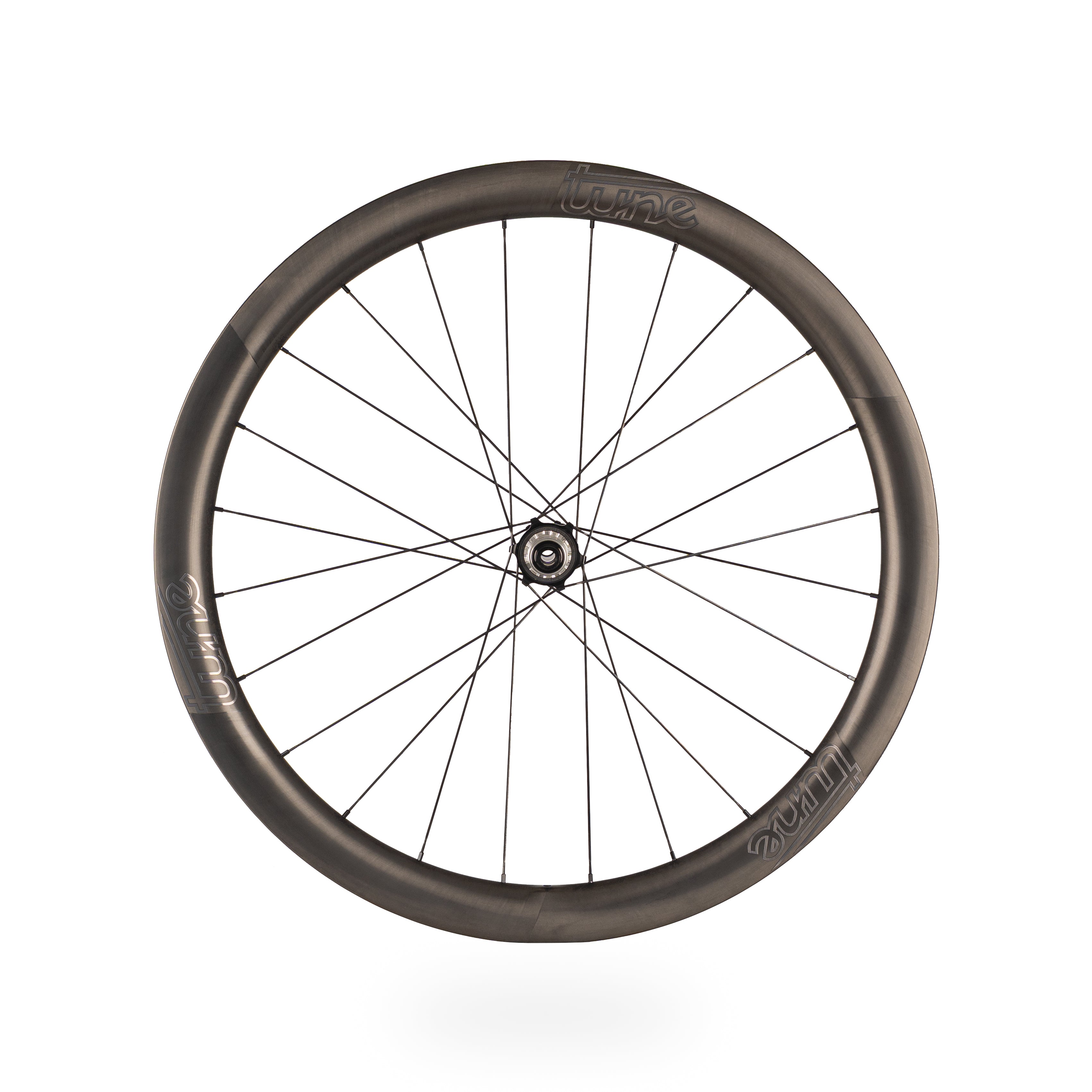

Wheelset Nano Road 45 Disc 700c

The Nano Road 45 is the all-round option in the Nano Road range.

With 45 mm hooked carbon rims and Sapim CX-Ray spokes, it is designed for fast road riding, rolling terrain and everyday performance.

The 24 mm internal rim width is compatible with tires from 28 to 45 mm and optimized for 28 to 30 mm road tires.

At just 1340 g (+/- 3%), the Nano Road 45 balances aerodynamics, weight and reliability while still offering a maximum system weight of 130 kg. Like all other tune wheelsets, it comes with a full 10-year warranty.

Hub: Nano, POEtry 69 freewheel system, Enduro Bearings options
Spokes: 24/24 Sapim CX-Ray

The Nano hub platform is built for low weight, easy service and reliable road performance with proven steel-spoke construction.

Whether you are racing, riding fast group rides or looking for one wheelset to cover most road conditions, the Nano Road 45 is built for speed, stability and everyday performance.

Technical data

Weight wheelset: 1340 g (+/- 3%)
UCI status: approved
Max. system weight: 130 kg
Max. rider weight: 120 kg
Max. pressure: 7 bar
Hub type: Nano 24 holes with POEtry 69 freewheel, 69 points of engagement and Enduro Bearings options. Freewheels available: HG, XDR, Microspline, N3W
Spokes: 24 pcs front and 24 pcs rear Sapim CX-Ray
Rim inner width: 24 mm front and rear
Rim outer width: 32 mm front and rear
Rim height: 45 mm front and rear
Rim standard: 700c clincher
Tubeless Ready: yes
Valve type: Tune tubeless valves, delivered with the wheelset
Tyre compatibility: compatible from 28 mm to 45 mm; optimized for 28 mm to 30 mm road tires

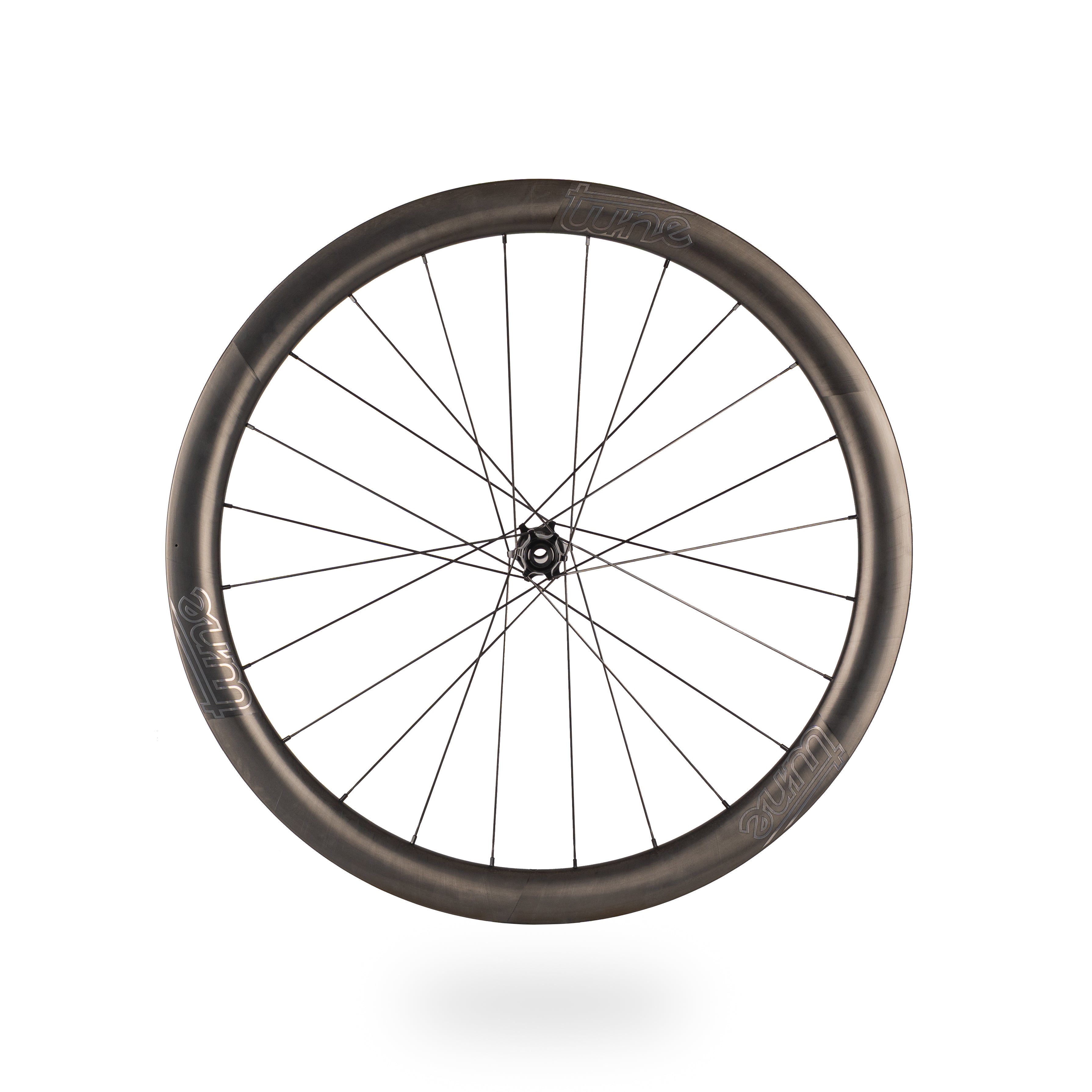

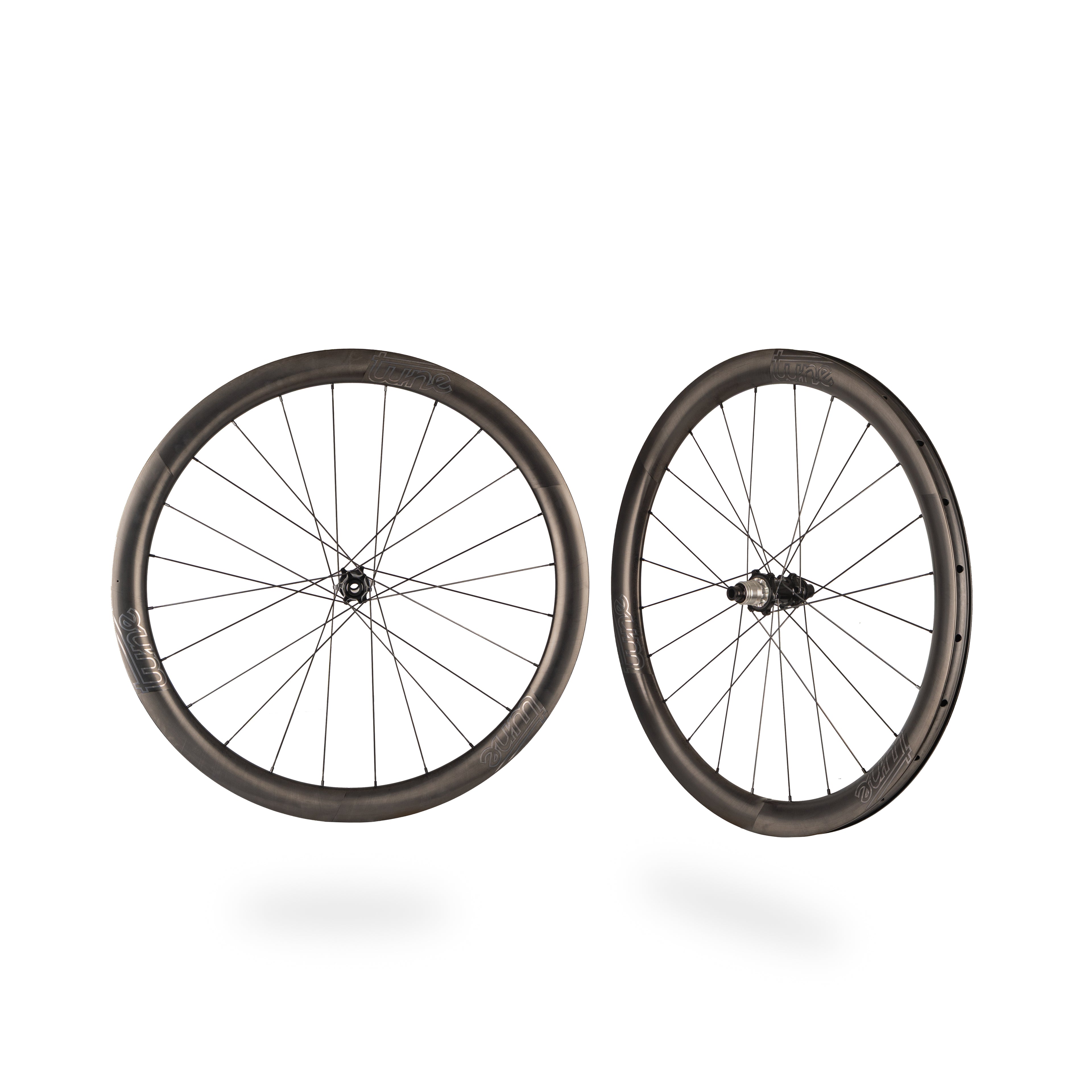

Colours: black or silver
Brake interface: Centerlock disc-brake interface
Axle standard: front: 100x12 mm, rear: 142x12 mm
Warranty: 10 years for the rims, hub bodies, axles and end caps; lifetime warranty for ceramic XD-15 ball bearings. Wear parts are not covered.

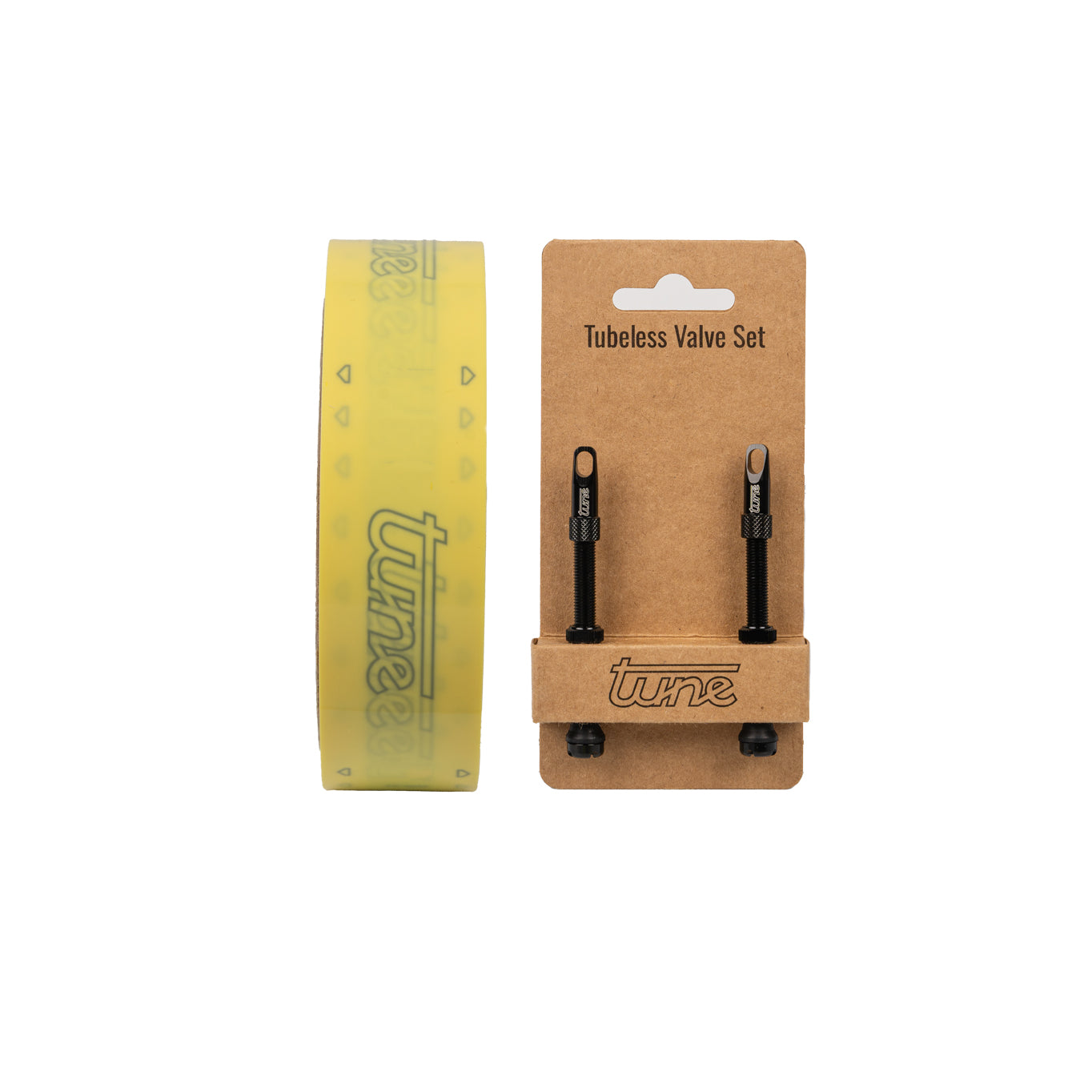

Scope of delivery: wheels and packaging, tubeless valves, rim tape
