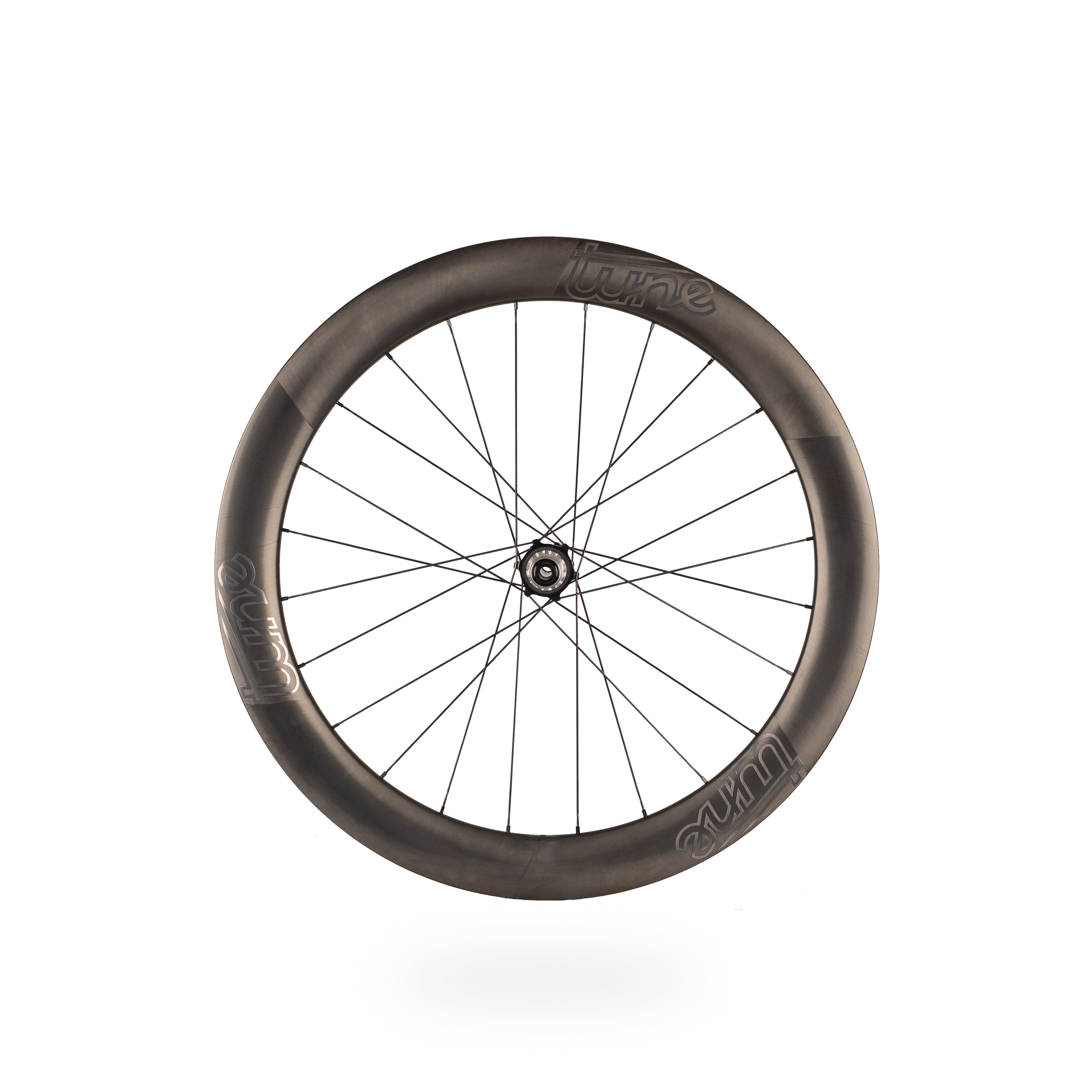

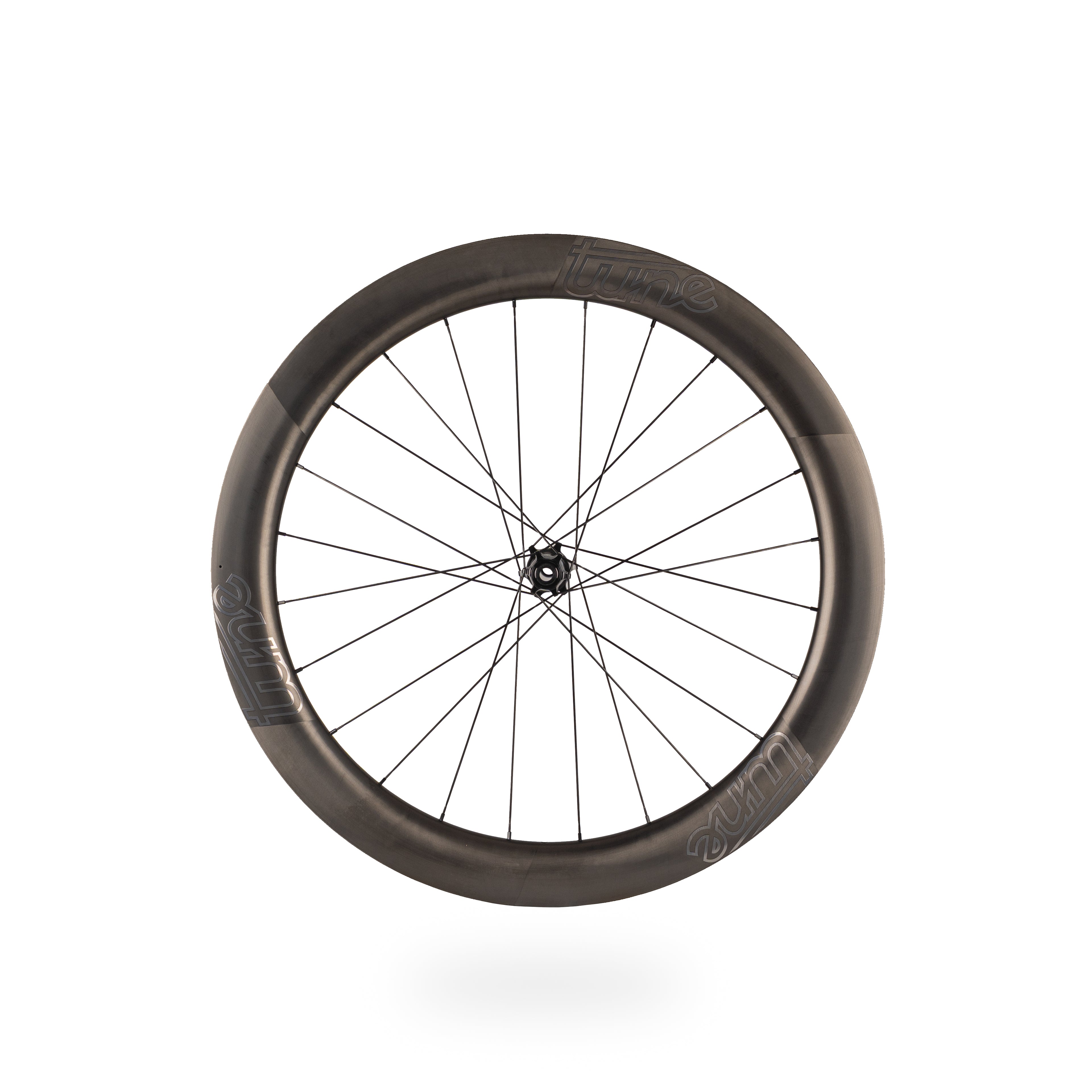

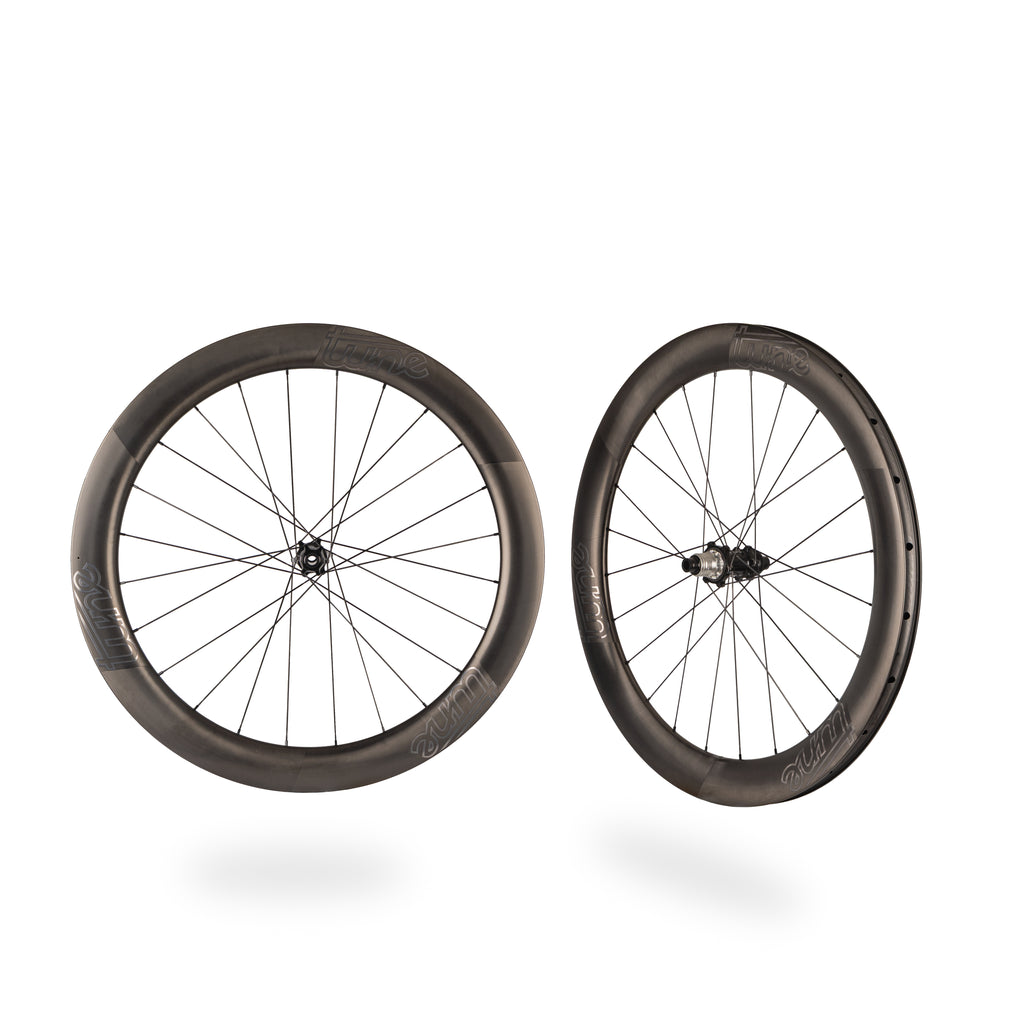

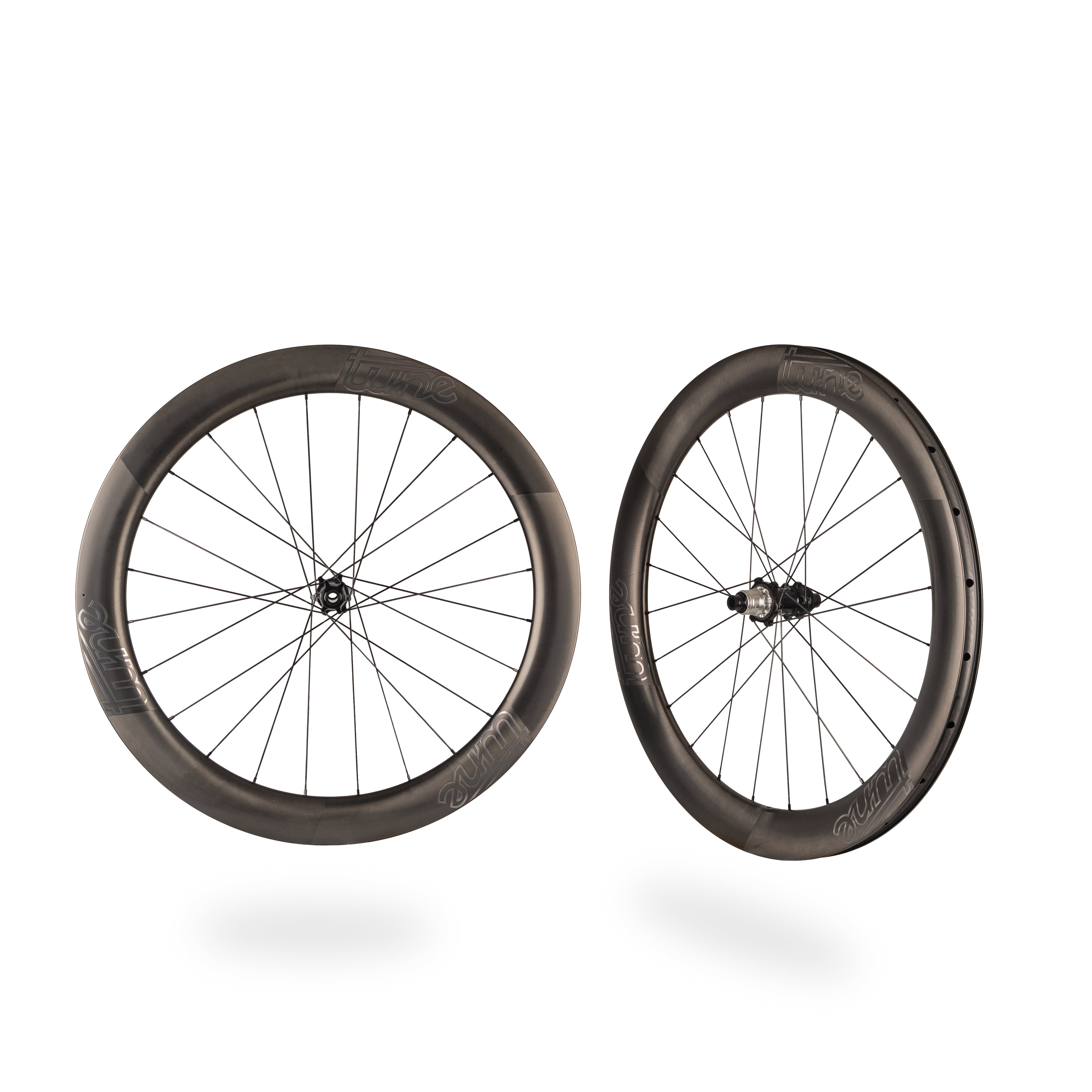

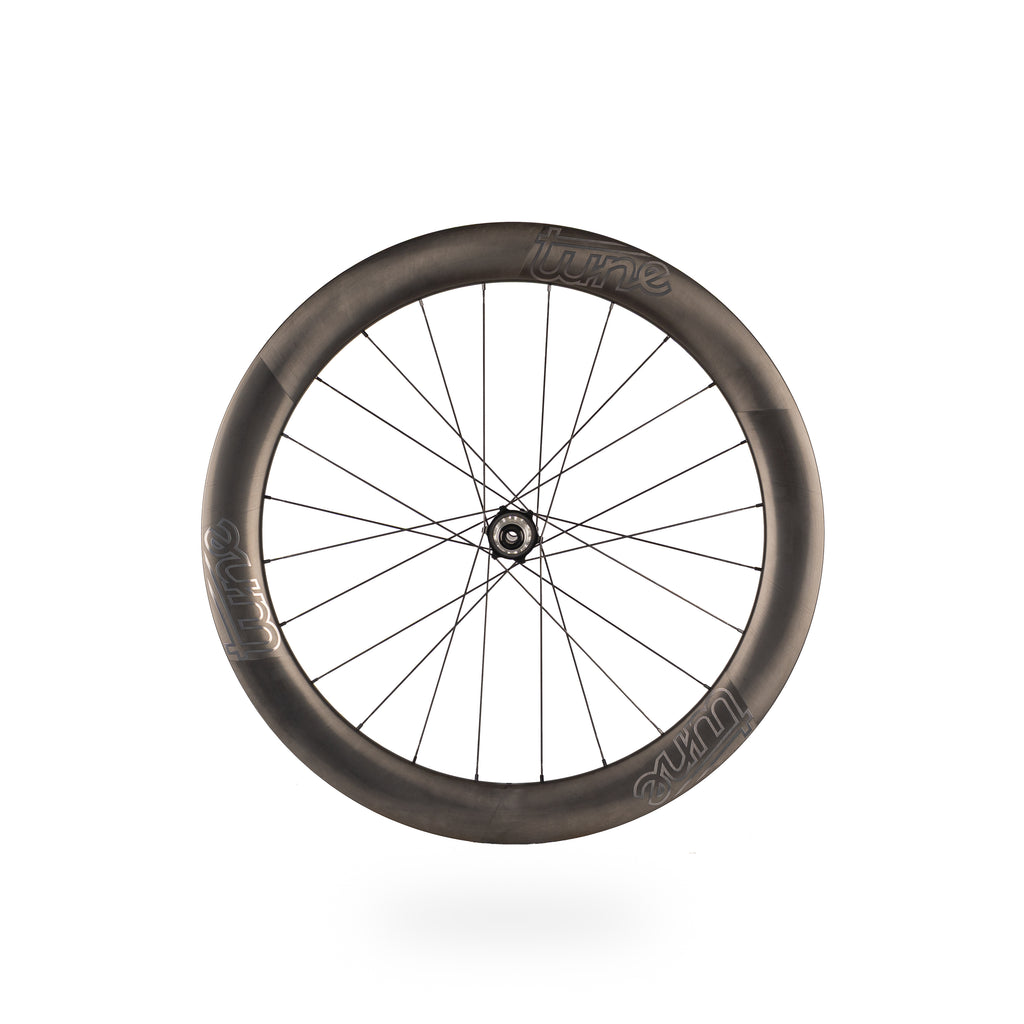

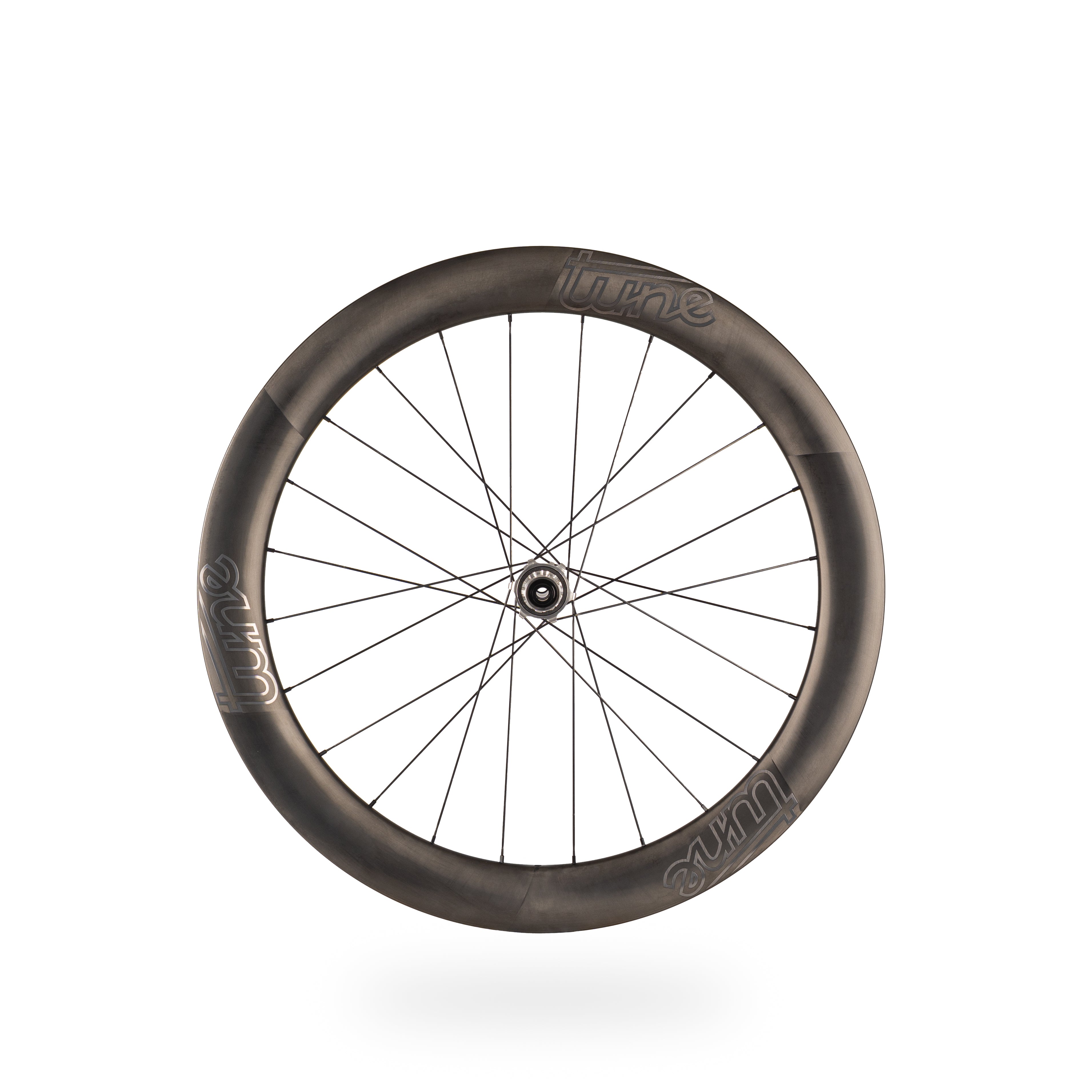

Wheelset Nano Road 60 Disc 700c

The Nano Road 60 is made for fast road riding, racing and riders who want more aerodynamic support at speed.

With 60 mm hooked carbon rims and Sapim CX-Ray spokes, it is designed for efficient airflow and stable handling on fast sections.

The 24 mm internal rim width is compatible with tires from 28 to 45 mm and optimized for 28 to 30 mm road tires.

At just 1440 g (+/- 3%), the Nano Road 60 offers deep-section performance with proven Sapim CX-Ray spokes and a maximum system weight of 130 kg. Like all other tune wheelsets, it comes with a full 10-year warranty.

Hub: Nano, POEtry 69 freewheel system, Enduro Bearings options
Spokes: 24/24 Sapim CX-Ray

The Nano hub platform is built for low weight, easy service and reliable road performance with proven steel-spoke construction.

Whether you are racing, sprinting or riding fast road sections, the Nano Road 60 is built to hold speed efficiently and stay responsive under load.

Technical data

weight wheelset: 1440 g (+/- 3%)
max. pressure: 7 bar
hub type: Nano 24 holes with POEtry 69 freewheel, 69 points of engagement and Enduro Bearings options. Freewheels available: HG, XDR, Microspline, N3W
spokes: 24 pcs front and 24 pcs rear Sapim CX-Ray
max. rider weight: 120 kg
max. system weight: 130 kg
rim inner width: 24 mm front and rear
rim outer width: 32 mm front and rear
rim height: 60 mm front and rear
rim standard: 700c clincher
tubeless ready: yes
valve type: Tune tubeless valves, delivered with the wheelset
tires: compatible from 28 mm to 45 mm; optimized for 28 mm to 30 mm road tires
brake interface: Centerlock disc-brake interface

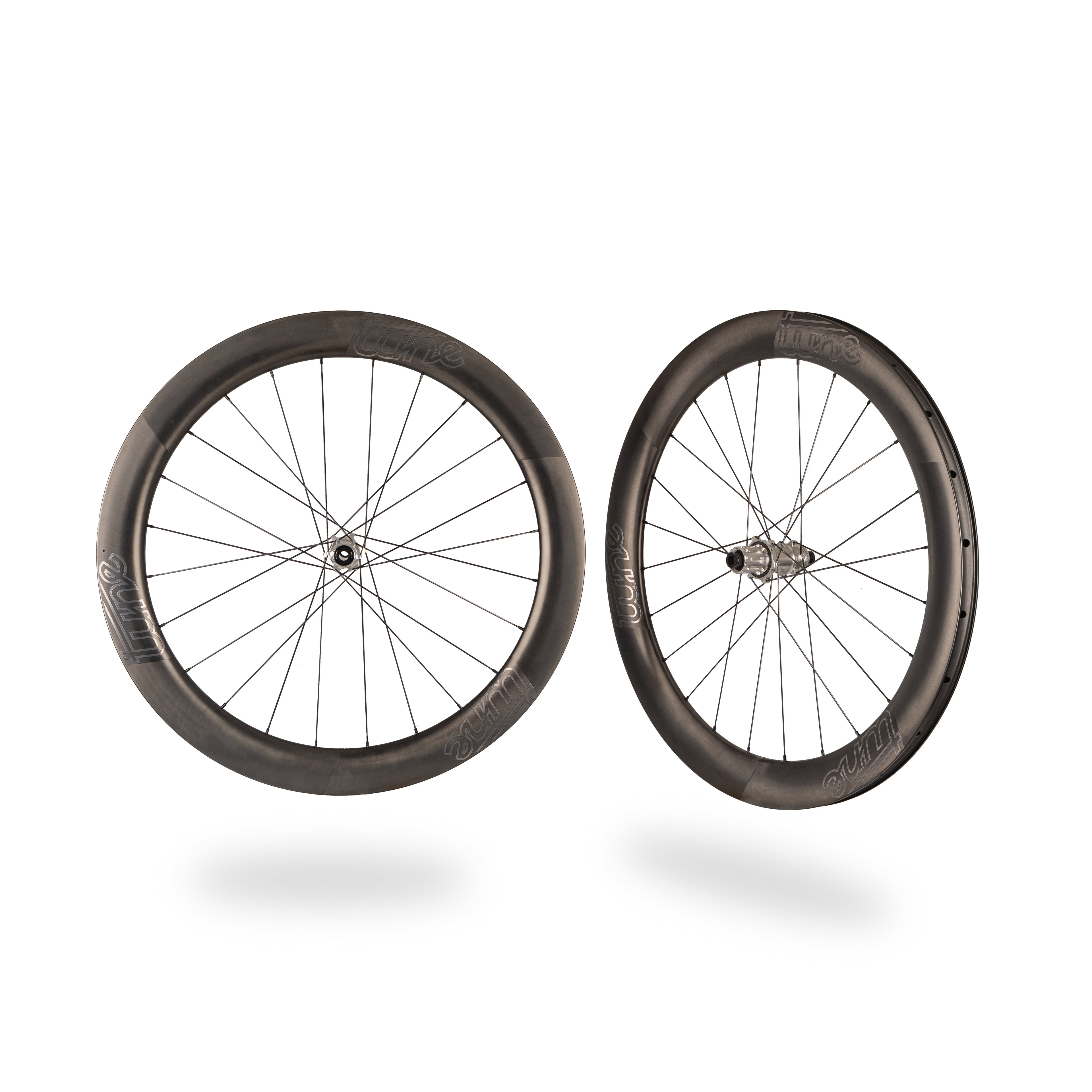

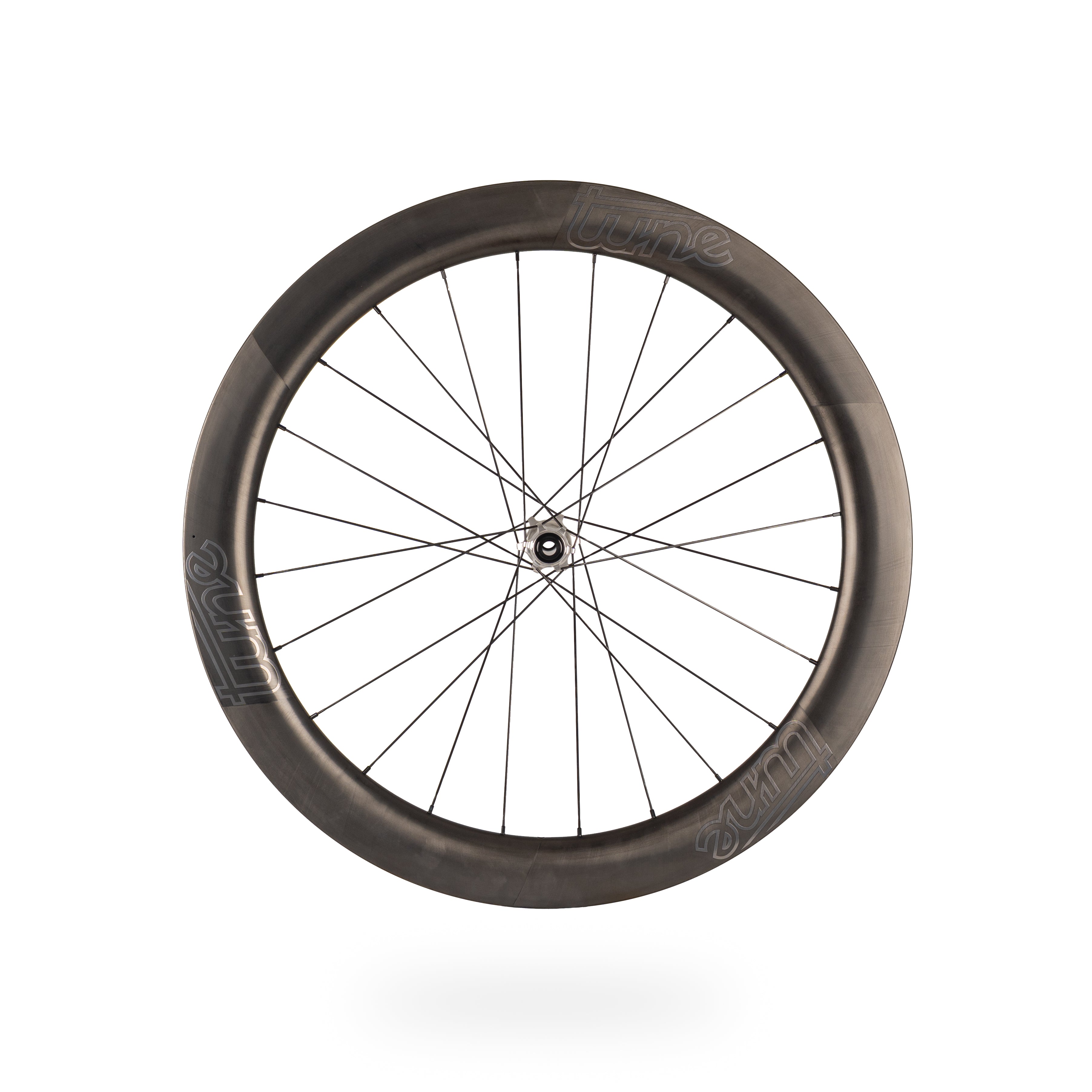

hub colours: black or silver
UCI status: approved

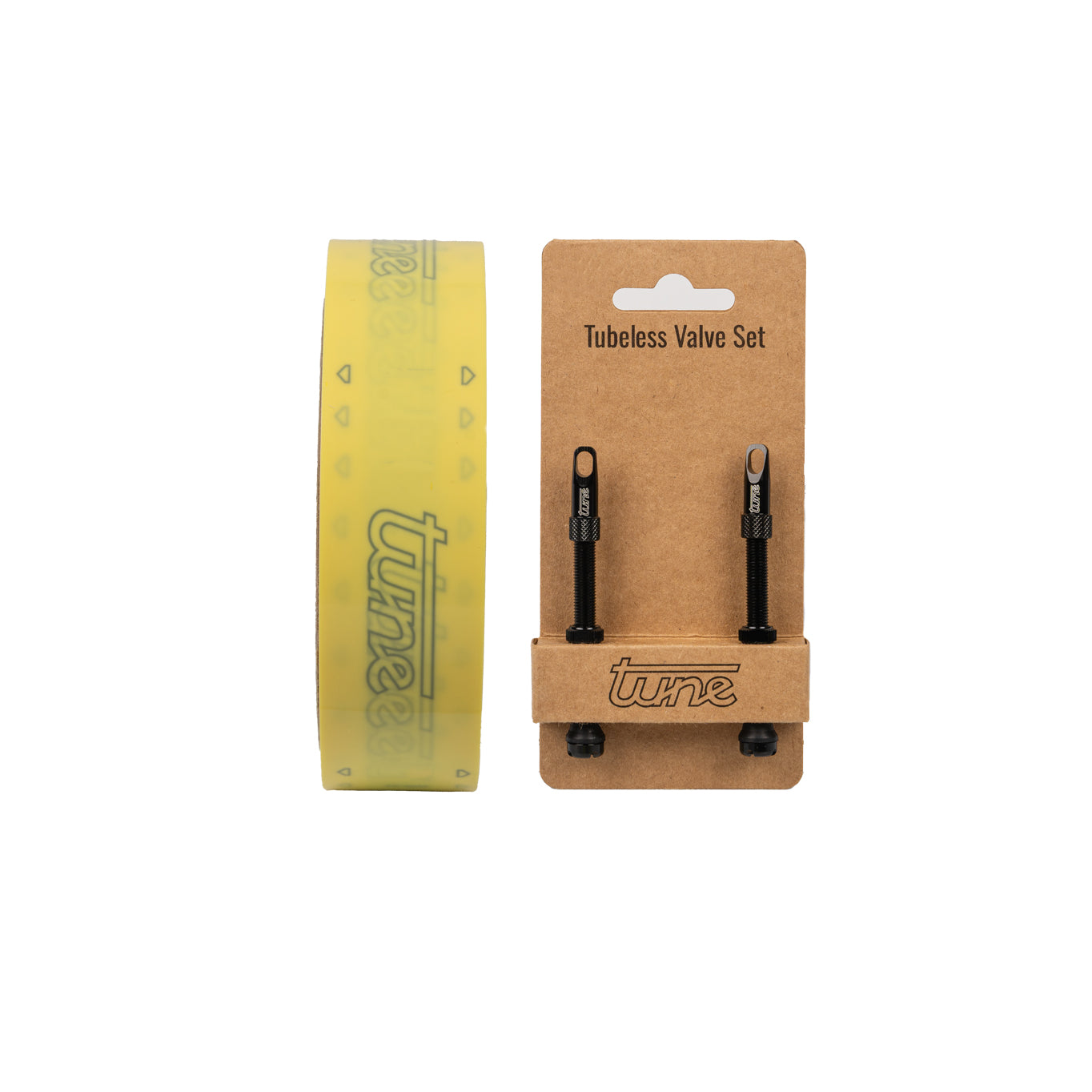

scope of delivery: wheels and packaging, 2 spare spokes with nipples, tubeless valves, rim tape
axle standard: front: 100x12 mm, rear: 142x12 mm
warranty: 10 years for the rims, hub bodies, axles and end caps; lifetime warranty for ceramic XD-15 ball bearings. Wear parts are not covered.
